SKU: NU2311-CDX

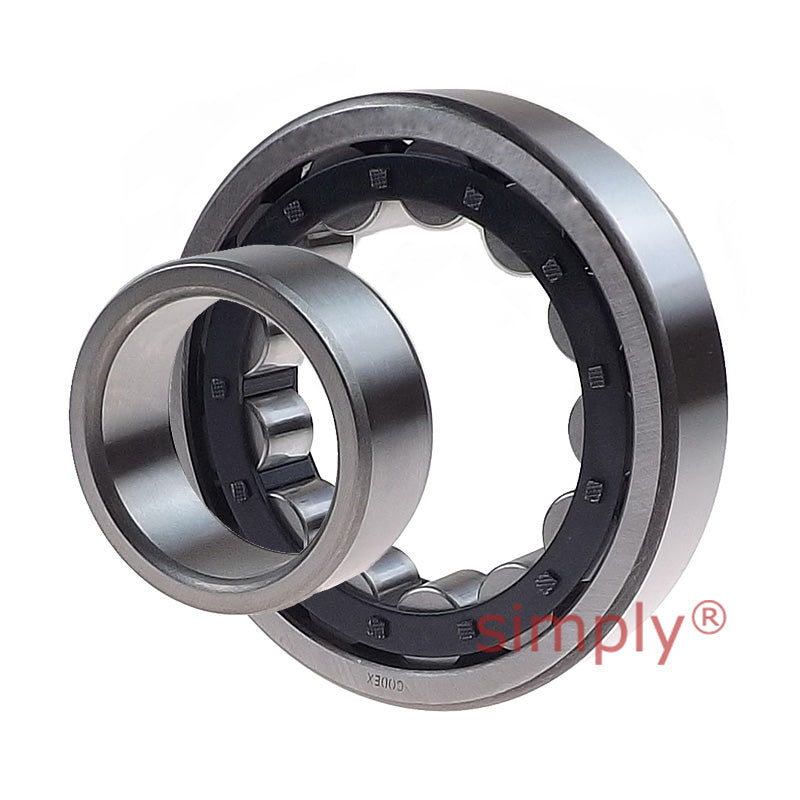

Codex NU2311 Single Row Cylindrical Roller Bearing 55x120x43mm
- Regular price
- €127.69 ex VAT
- Sale price
- €127,69
- Regular price
-
In stock
Quantity Price Breaks
10
€113.64
19
€107.26
29
€105.98
39
€104.71
49
€103.43
74
€102.15
99
€95.77
199
€94.49
249
€93.21
499
€91.94
999
€89.38
SKU:
NU2311-CDX
Codex NU2311 Single Row Cylindrical Roller Bearing 55x120x43mm
- Regular price
- €127.69 ex VAT
- Sale price
- €127,69
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 55mm |
| D | = | 120mm |
| B | = | 43mm |
| Dynamic load C | = | 232 kN |
| Static load Co | = | 232 kN |
| Fatigue load limit Pu | = | 30.5 kN |
| Reference speed | = | 6000 rpm |
| Limiting speed | = | 7000 rpm |
| Weight | = | 2.2 kg |
| Cage options | = | ML |
| d1 | = | 77.5mm |
| D1 | = | 101mm |
| F, E | = | 70.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 3.5mm |
| da min | = | 66mm |
| da max | = | 68mm |
| db min | = | 73mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2311EC |
| Angle ring weight | = | 0.2kg |
| B1 | = | 9mm |
| B2 | = | 15.5mm |
