SKU: NU2319ECJ/C3-SKF

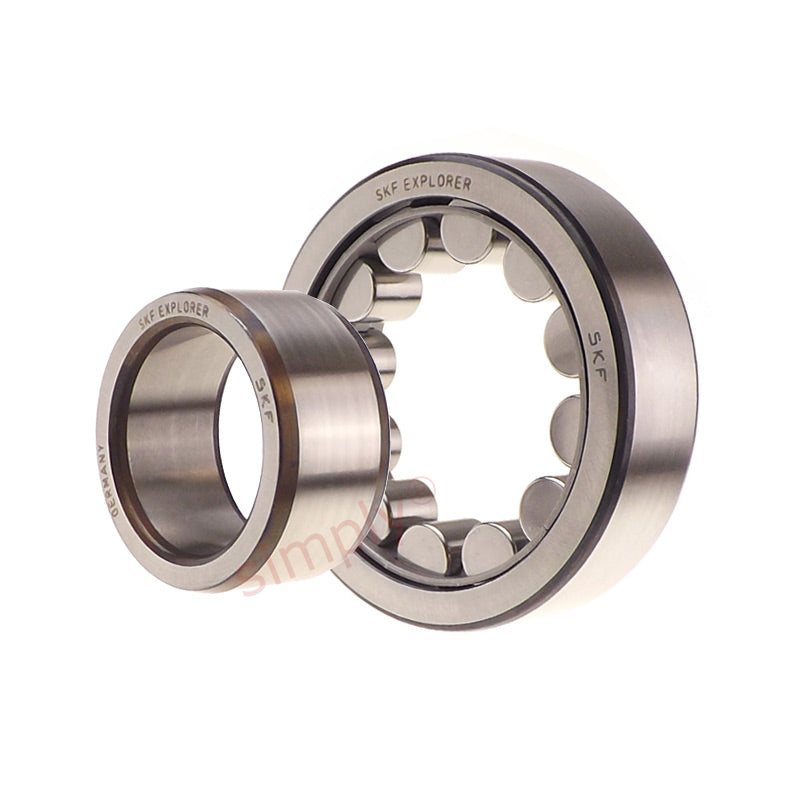

SKF NU2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
SKF NU2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
Regular price
€815,22
ex VAT
Regular price
Sale price
€815,22
ex VAT
In stock
Price Break
10+
€619,53
19+
€584,72
29+
€577,76
39+
€570,80
49+
€563,84
74+
€556,88
99+
€522,08
199+
€515,11
249+
€508,15
499+
€501,19
999+
€487,27
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 67mm
- Seals / Shields:
- None
- Clearance:
- C3

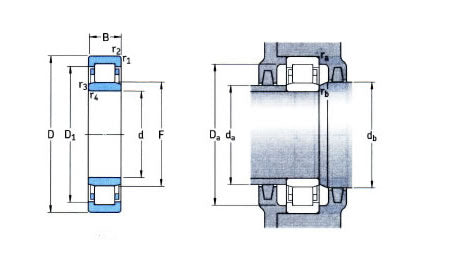

Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 67mm |
| Dynamic load C | 530 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 9.35 kg |
| Alt cage | J.ML |
| d1 | 132mm |
| D1 | 170mm |
| F,E | 121.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 6.9mm |
| da min | 109mm |
| da max | 118mm |
| db | 124mm |
| Da max | 186mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2319EC |
| Angle ring weight | 0.81 kg |
| B1 | 13mm |
| B2 | 24.5mm |
