SKU: NU2336ECMA/C3-SKF

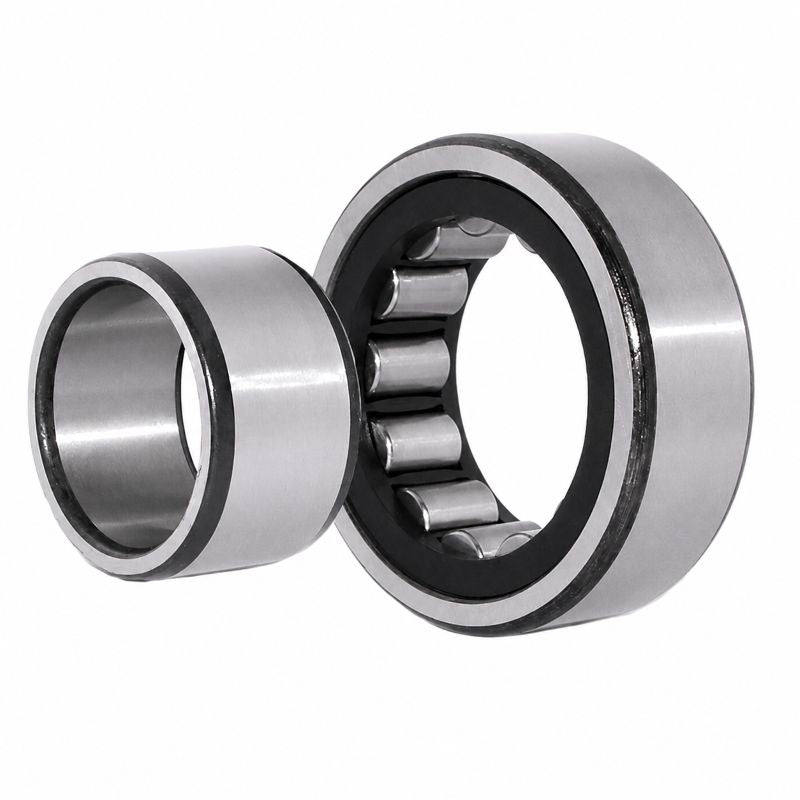

SKF NU2336ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 180x380x126mm
SKF NU2336ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 180x380x126mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 380mm
- Width:
- 126mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 180mm |
|---|---|
| D | 380mm |
| B | 126mm |
| Dynamic load C | 1610 kN |
| Static load Co | 2240 kN |
| Fatigue load limit Pu | 216 kN |
| Reference speed | 1600 rpm |
| Limiting speed | 2800 rpm |
| Weight | 71.5 kg |
| D1 | 320mm |
| F,E | 227mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 10.5mm |
| da min | 197mm |
| da max | 223mm |
| db | 231mm |
| Da max | 363mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.25 |
