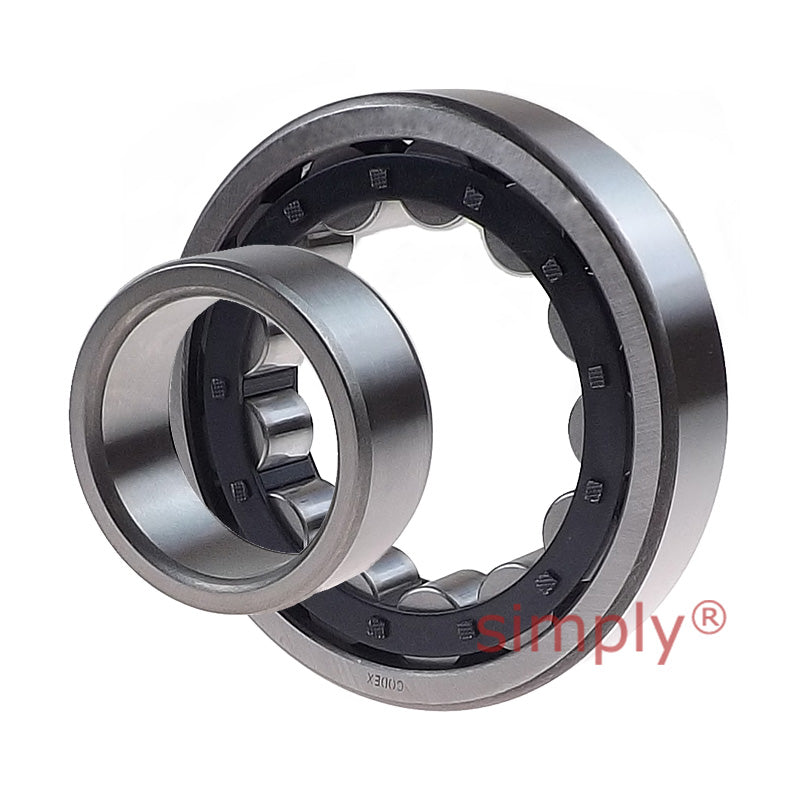

• Codex NU308 Single Row Cylindrical Roller Bearing 40x90x23mm
1 1

SKU: NU308-CDX

Codex NU308 Single Row Cylindrical Roller Bearing 40x90x23mm

Codex NU308 Single Row Cylindrical Roller Bearing 40x90x23mm
€49,85 ex VAT
€49,85 ex VAT
Sale Sold out

In stock

Price Break
10+ €37,89
19+ €35,76
29+ €35,33
39+ €34,91
49+ €34,48
74+ €34,06
99+ €31,93
199+ €31,50
249+ €31,08
499+ €30,65
999+ €29,80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NU_C6_DESC
Brand / Quality:
Codex - Good Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 90mm
B 23mm
Dynamic load C 93 kN
Static load Co 78 kN
Fatigue load limit Pu 10.2 kN
Reference speed 8000 rpm
Limiting speed 9500 rpm
Weight 0.65 kg
Cage options J.M.ML
d1 57.5mm
D1 75.6mm
F, E 52mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.4mm
da min 49mm
da max 50mm
db min 54mm
Da max 81mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
Angle ring HJ308EC
Angle ring weight 0.084kg
B1 7mm
B2 11mm
