SKU: NUP2312-EU

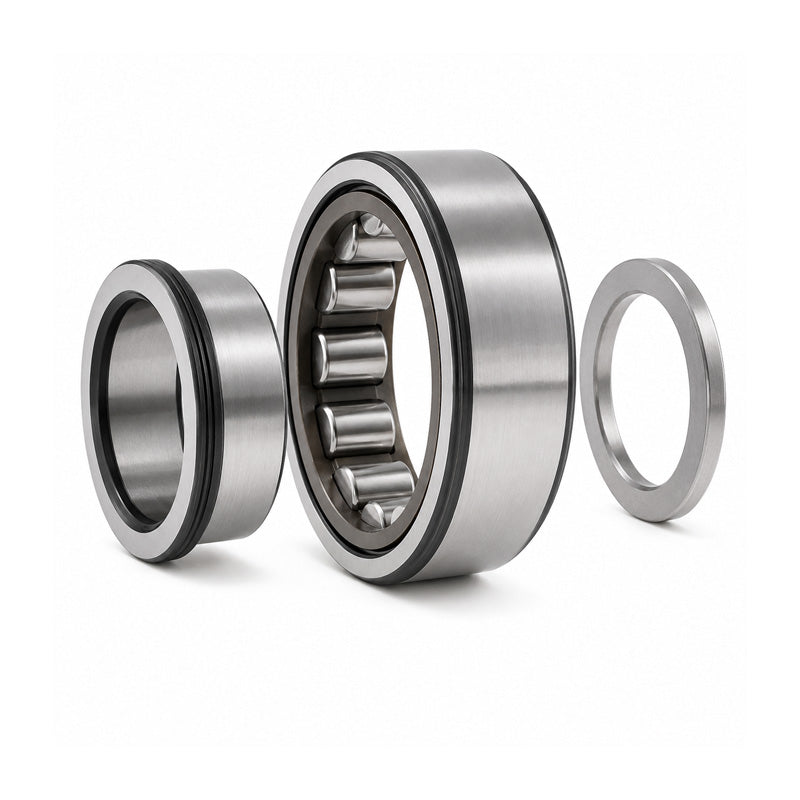

NUP2312 Budget Single Row Cylindrical Roller Bearing 60x130x46mm
NUP2312 Budget Single Row Cylindrical Roller Bearing 60x130x46mm
Regular price
€157,63
ex VAT
Regular price
Sale price
€157,63
ex VAT
In stock
Price Break
10+
€119,80
19+
€113,07
29+
€111,72
39+
€110,37
49+
€109,03
74+
€107,68
99+
€100,95
199+
€99,61
249+
€98,26
499+
€96,91
999+
€94,22
Quantity
Couldn't load pickup availability
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 46mm |
| Dynamic load C | 260 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2.85 kg |
| Cage options | ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F, E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| da min | 72mm |
| db min | 87mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
