SKU: NUP2319ECJ/C3-SKF

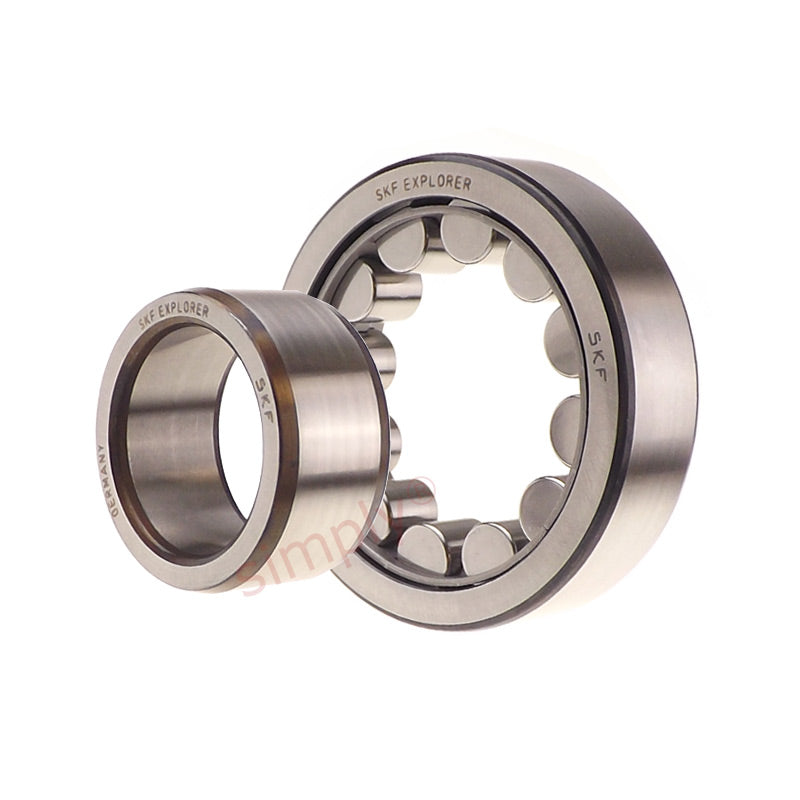

SKF NUP2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
SKF NUP2319ECJC3 Single Row Cylindrical Roller Bearing with Steel Cage 95x200x67mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 67mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 67mm |
| Dynamic load C | 530 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 9.75 kg |
| Alt cage | J.ML |
| d1 | 132mm |
| D1 | 170mm |
| F,E | 121.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| da min | 109mm |
| db | 135mm |
| Da max | 186mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
