SKU: NUP2326ECMA-SKF

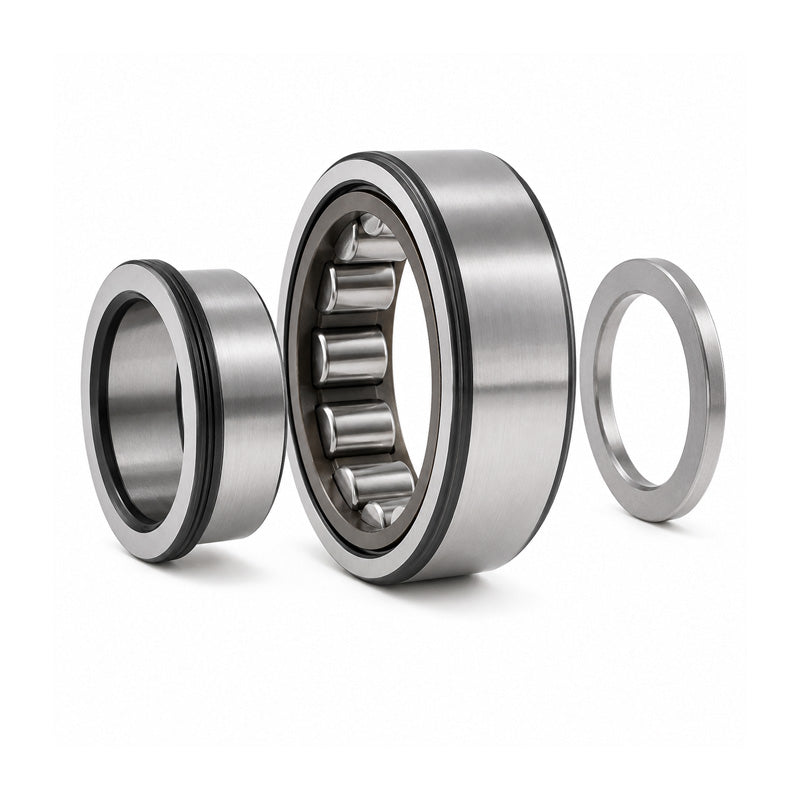

SKF NUP2326ECMA Single Row Cylindrical Roller Bearing with Brass Cage 130x280x93mm
SKF NUP2326ECMA Single Row Cylindrical Roller Bearing with Brass Cage 130x280x93mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 93mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 280mm |
| B | 93mm |
| Dynamic load C | 1060 kN |
| Static load Co | 1250 kN |
| Fatigue load limit Pu | 137 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 3800 rpm |
| Weight | 31 kg |
| d1 | 181mm |
| D1 | 236mm |
| F,E | 167mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| da min | 147mm |
| db | 185mm |
| Da max | 263mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.25 |
