SKU: NUP240ECMA/C3-SKF

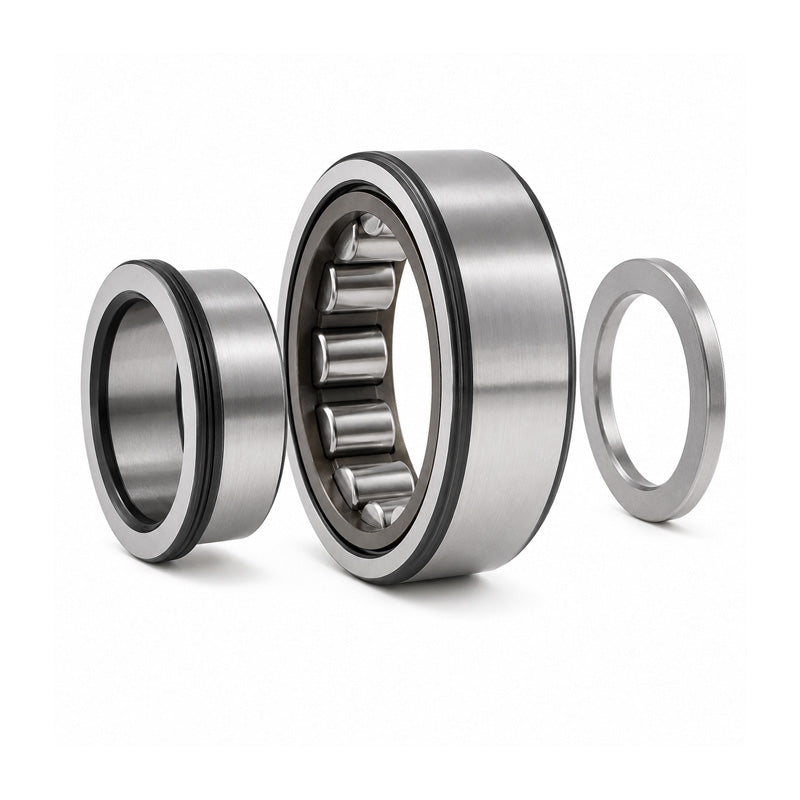

SKF NUP240ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 200x360x58mm
SKF NUP240ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 200x360x58mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 360mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 200mm |
|---|---|
| D | 360mm |
| B | 58mm |
| Dynamic load C | 850 kN |
| Static load Co | 1020 kN |
| Fatigue load limit Pu | 100 kN |
| Reference speed | 1900 rpm |
| Limiting speed | 2800 rpm |
| Weight | 29.5 kg |
| Alt cage | M |
| d1 | 258mm |
| D1 | 312mm |
| F,E | 243mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| da min | 217mm |
| db | 262mm |
| Da max | 343mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
