SKU: P40-XL-037

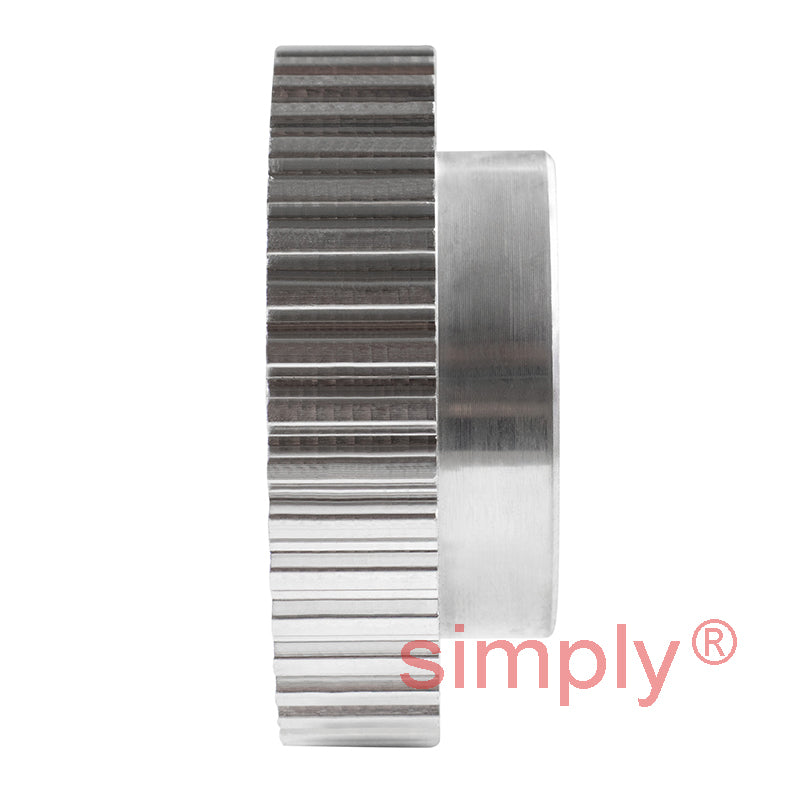

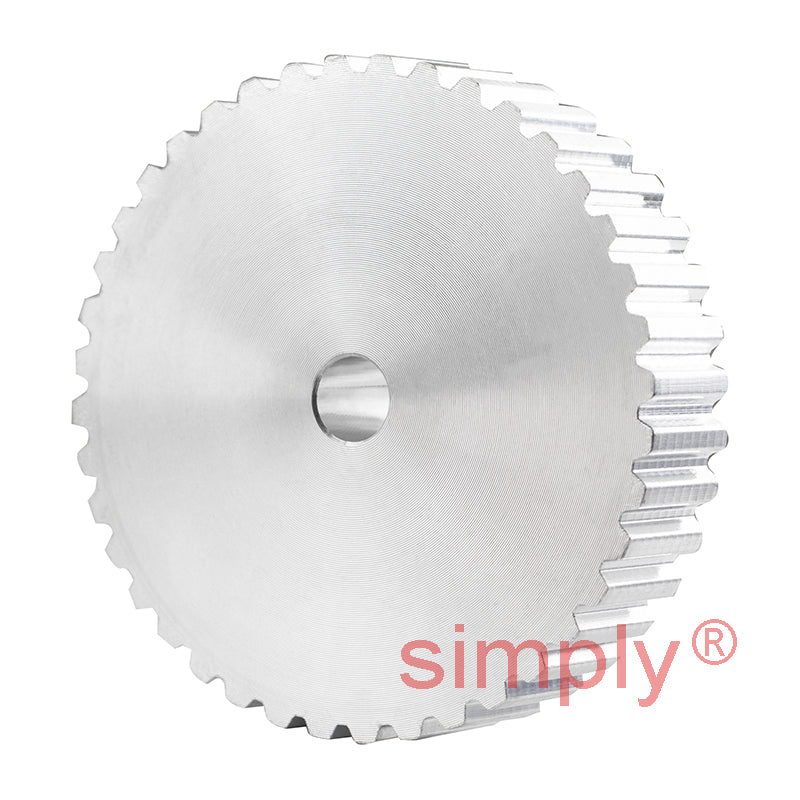

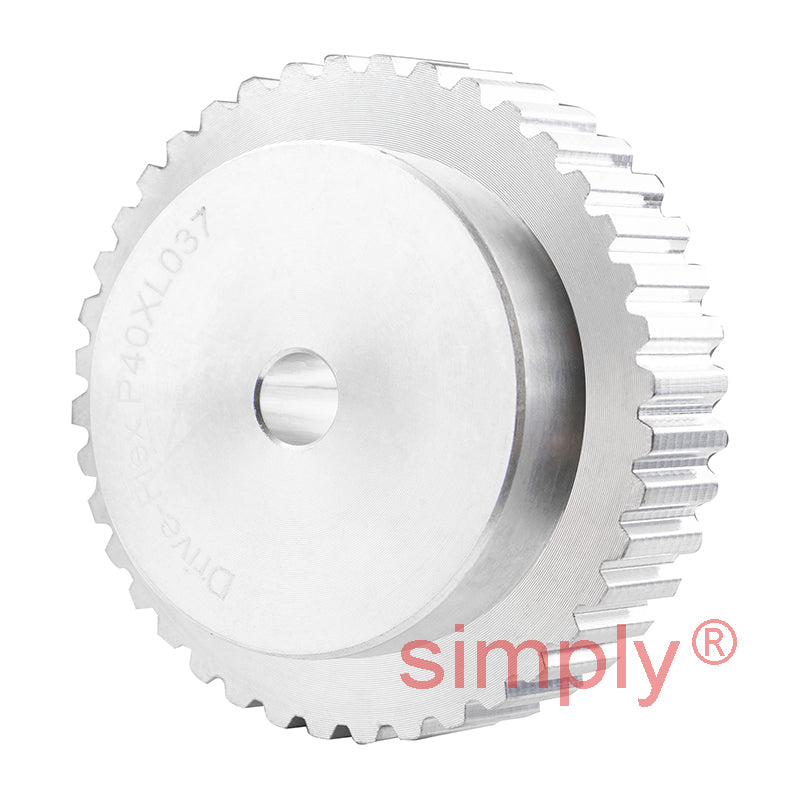

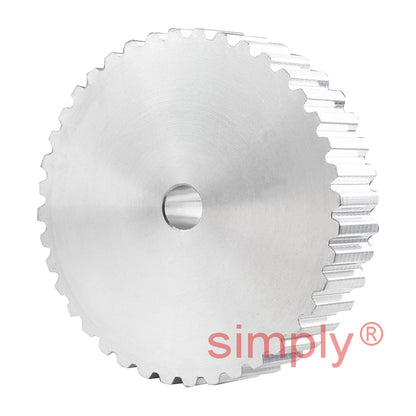

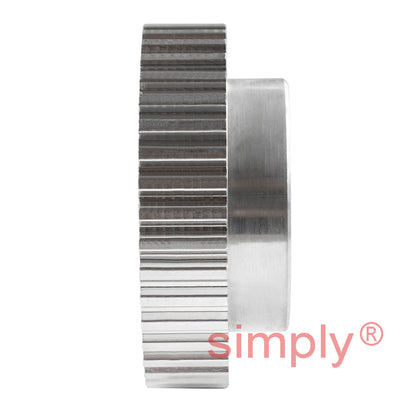

P40-XL-037 - 1/5 inch Pitch 40 Tooth Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt
- Regular price
- €16.47 ex VAT
- Sale price
- €16,47
- Regular price
-
In stock
Quantity Price Breaks
3
€14.66
5
€13.83
9
€13.67
19
€13.51
49
€13.34
74
€13.18
99
€12.35
199
€12.19
249
€12.02
499
€11.86
999
€11.53
SKU:
P40-XL-037
P40-XL-037 - 1/5 inch Pitch 40 Tooth Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt
- Regular price
- €16.47 ex VAT
- Sale price
- €16,47
- Regular price
-
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

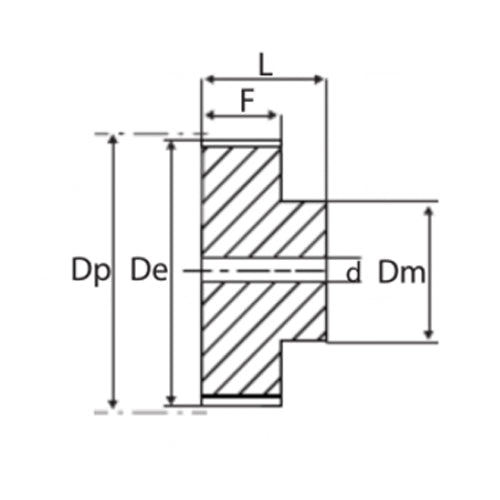

Technical
| No.teeth | = | 40 |
| Dp | = | 64.68mm |
| De | = | 64.17mm |
| Dm | = | 45mm |
| Fw | = | 14.3mm |
| L | = | 25mm |
| Bore (d) | = | 8mm |
| Material | = | Aluminium |
| Bore | = | Pilot Bored |
| Belt Width | = | 9.53mm = 0.375 (3/8) inch |
| Pitch | = | 5.08mm = 0.2 (1/5) inch |
