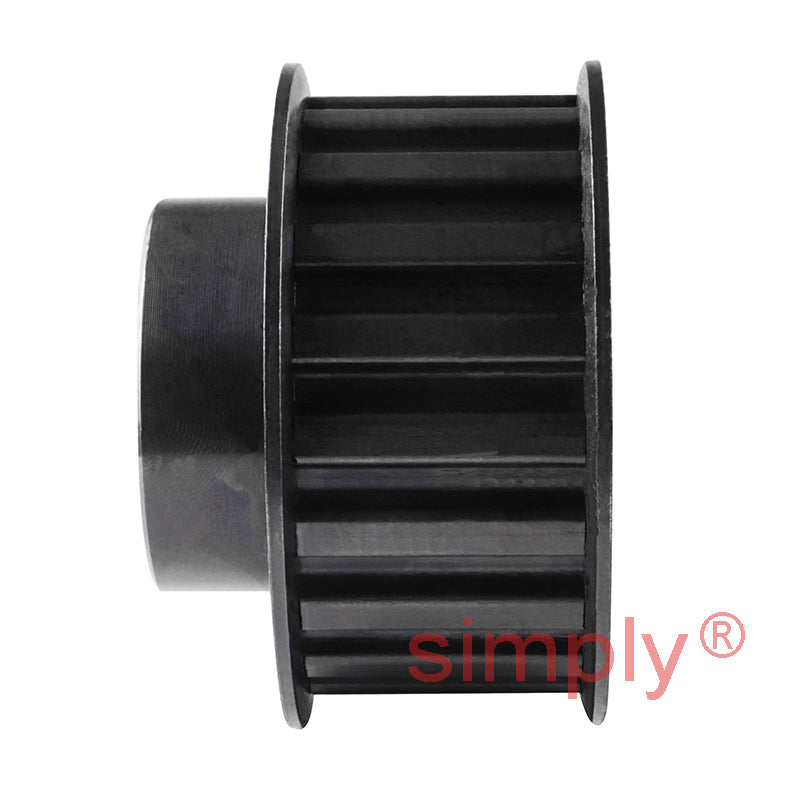

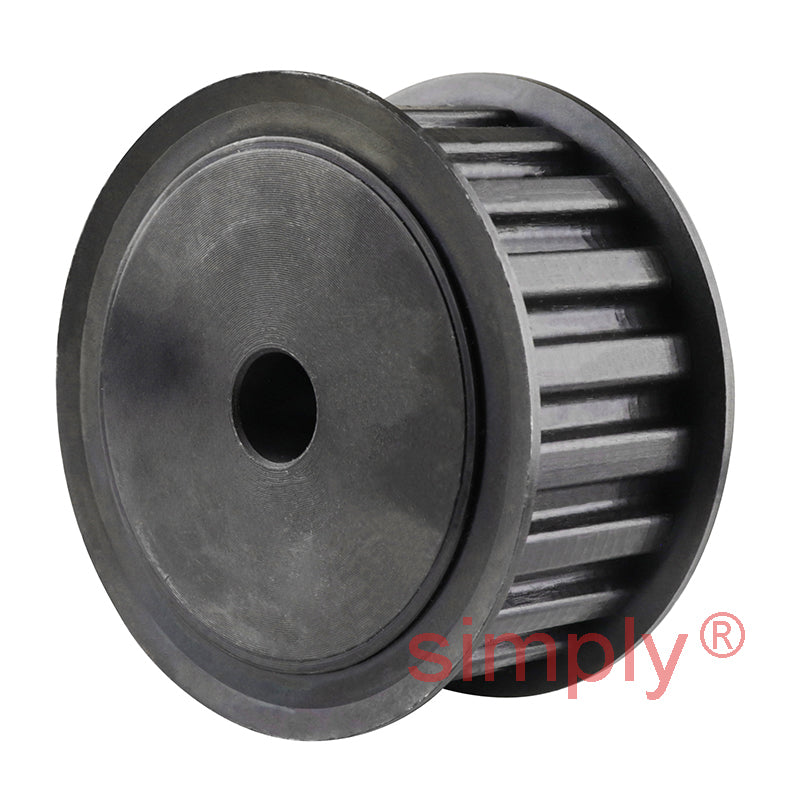

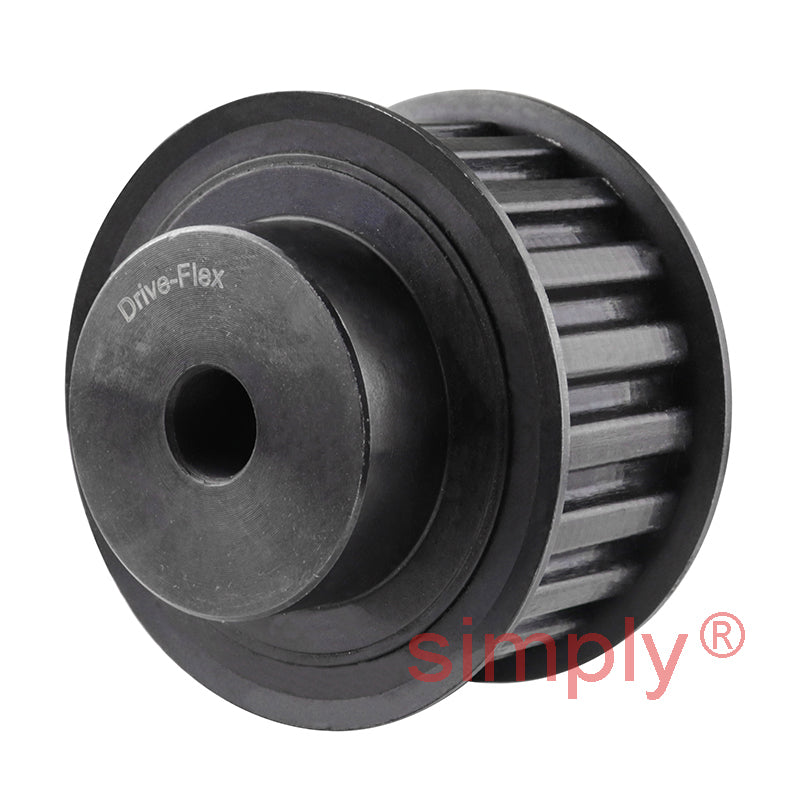

P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts

SKU: P44-H-300F

P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts

€99.92 ex VAT
€99,92
ex VAT
Equivalent to: P44H300F
Not in stock

Quantity Price Breaks

3 €88.93
5 €83.93
9 €82.93
19 €81.93
49 €80.94
74 €79.94
99 €74.94
199 €73.94
249 €72.94
499 €71.94
999 €69.94
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts
SKU: P44-H-300F

P44-H-300F - 1/2 inch Pitch 44 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 3 inch Wide Belts

€99.92 ex VAT
€99,92
ex VAT

Description

Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

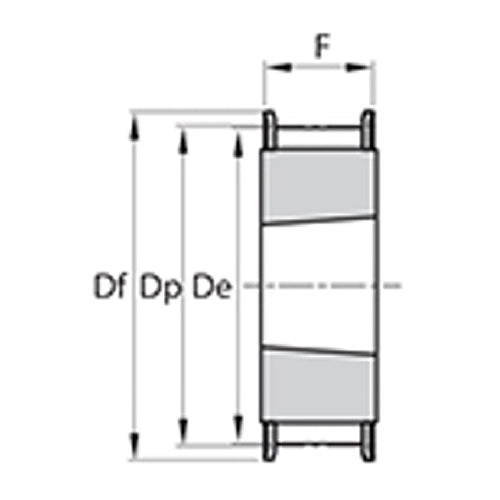

Technical

No. teeth = 44
Dp = 177.88mm
De = 176.5mm
Df = 184mm
Dm = 80mm
F = 85.7mm
L = 100mm
d = 24
No. flanges = 2
Material = Cast Iron
Bore = Pilot Bored
Belt Width = 76.2mm = 3 inch
Pitch = 12.7mm = 0.5 (1/2) inch
