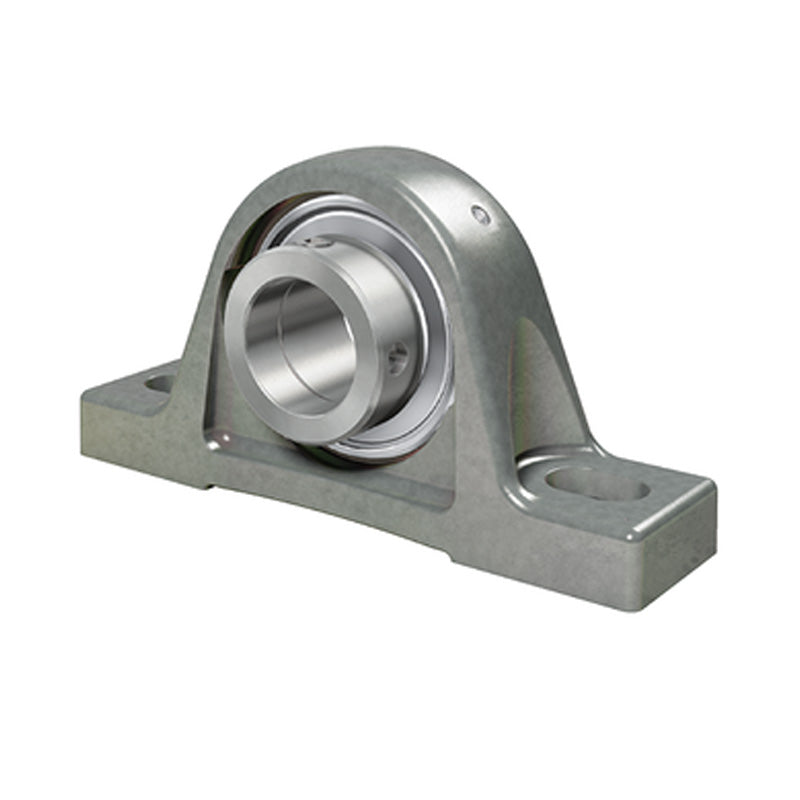

• INA PAK1-1/4 Cast Iron Plummer Block Housing with Eccentric Collar Insert 1-1/4 inch Bore
  • INA
1 2

SKU: PAK1-1/4-INA

INA PAK1-1/4 Cast Iron Plummer Block Housing with Eccentric Collar Insert 1-1/4 inch Bore

INA PAK1-1/4 Cast Iron Plummer Block Housing with Eccentric Collar Insert 1-1/4 inch Bore
€21,36 ex VAT
€21,36 ex VAT
Sale Sold out

Low stock

Price Break
4+ €16,23
9+ €15,32
19+ €15,14
29+ €14,96
39+ €14,77
49+ €14,59
59+ €13,68
69+ €13,50
79+ €13,32
89+ €13,13
99+ €12,77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
PAK
Bolt Hole Centres:
130mm = 5.118 inch

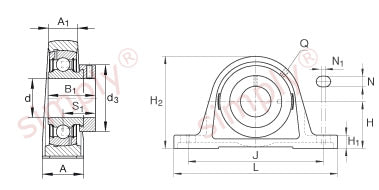

Technical
d 1-1/4 inch
d 31.8mm
L 6.772 inch
L 172mm
H2 3.626 inch
H2 92.1mm
A 1.831 inch
A1 1.142 inch
B1 1.535 inch
d3 max 2.008 inch
H 1.811 inch
H1 0.685 inch
J 5.118 inch
N 0.591 inch
N1 0.311 inch
Q 1/8 NPT?
S1 1.161 inch
Mass 3.79 lbs
Basic dynamic load rating Cr 5800 lbf
Basic dynamic load rating Cr 25500 N
Basic static load rating Cor 3450 lbf
Basic static load rating Cor 15300 N
Designation of housing GG.AK07?
Designation of bearing GRA104-NPP-B-AS2/V?
