SKU: PBS-DS-16B-17

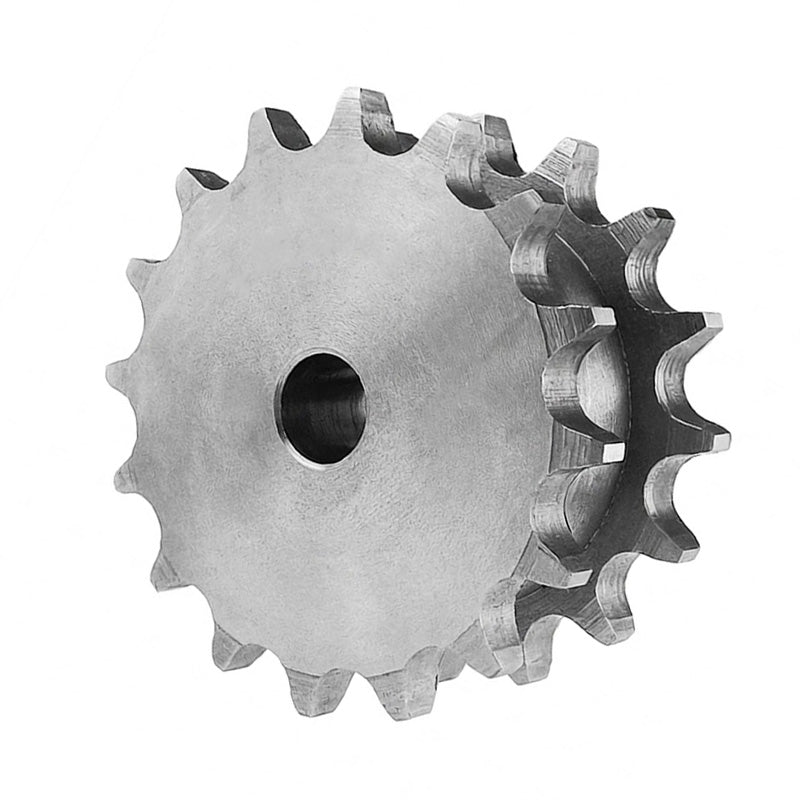

17 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €82.40 ex VAT
- Sale price
- €82,40
- Regular price
-
Not in stock
Quantity Price Breaks
5
€73.34
9
€69.22
19
€68.39
29
€67.57
49
€66.74
74
€65.92
99
€61.80
199
€60.98
249
€60.15
499
€59.33
999
€57.68
SKU:
PBS-DS-16B-17
17 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €82.40 ex VAT
- Sale price
- €82,40
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 17 |
| Pitch Diameter dp | = | 138.22mm |
| Outer Diameter de | = | 149mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 113mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 4.046 kg |
