SKU: PD16+PDR16+PDC12/16

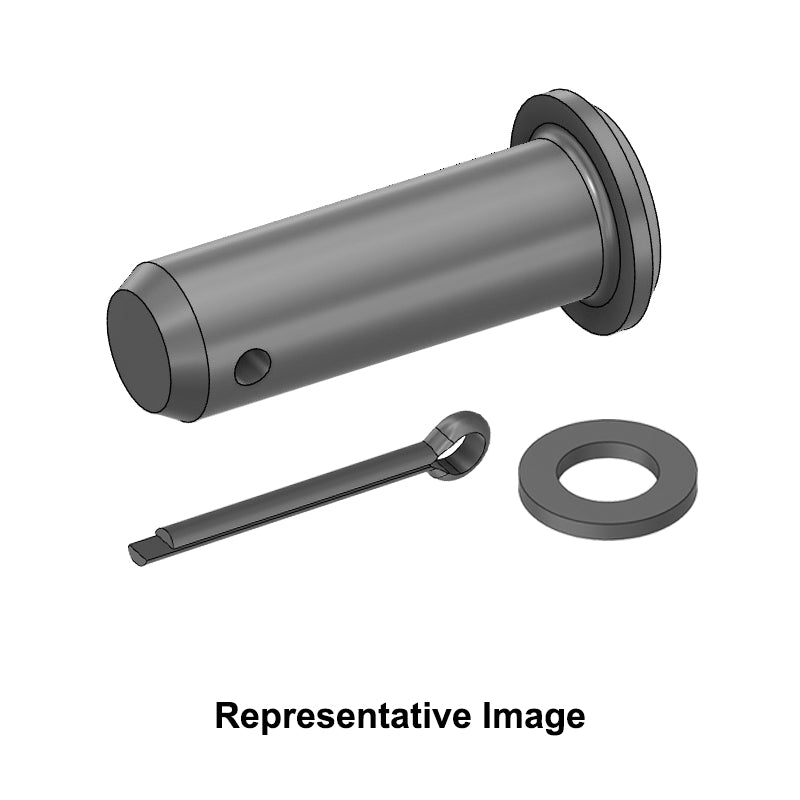

Chiavette PD16 Steel Clevis Pin Kit 16x45mm - Allow 7-10 Days
Chiavette PD16 Steel Clevis Pin Kit 16x45mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 16mm
- Length:
- 21mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD16+Pin>PD16</a> |
| Material | Steel |
| d | 16mm |
| D | 21mm |
| k | 3mm |
| z | 1.5mm |
| z1 | 2.5mm |
| r | 1mm |
| d2 | 4mm |
| l1 | 37.5mm (+0.5mm) |
| l | 45mm (+0.5mm) |
| Weight each | 0.067kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR16+Washer>PDR16</a> |
| Material | Steel |
| d1 | 17mm |
| d2 | 27mm |
| s | 2mm |
| Weight | 0.542kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC12/16+Retainer>PDC12/16</a> |
| Material | Steel |
| l | 30mm |
| u | 3mm |
| e | 7.2mm |
| b | 4.1mm |
| a | 3.7mm |
| Weight | 0.542 |
