SKU: PD25+PDR25+PDC25/30
Chiavette PD25 Steel Clevis Pin Kit 25x67mm - Allow 7-10 Days
Chiavette PD25 Steel Clevis Pin Kit 25x67mm - Allow 7-10 Days
Out of stock
Description
Description

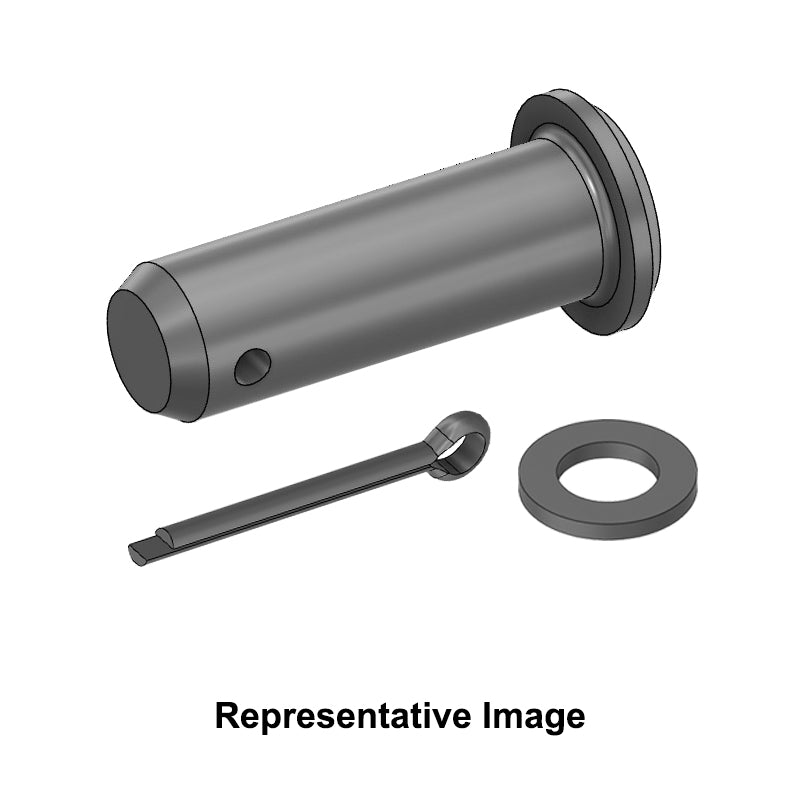

Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 25mm
- Length:
- 32mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD25+Pin>PD25</a> |
| Material | Steel |
| d | 25mm |
| D | 32mm |
| k | 5mm |
| z | 2mm |
| z1 | 3mm |
| r | 1mm |
| d2 | 6mm |
| l1 | 59mm (+0.5mm) |
| l | 67mm (+0.5mm) |
| Weight each | 0.26kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR25+Washer>PDR25</a> |
| Material | Steel |
| d1 | 25mm |
| d2 | 39mm |
| s | 4mm |
| Weight | 2.209kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC25/30+Retainer>PDC25/30</a> |
| Material | Steel |
| l | 40mm |
| u | 3mm |
| e | 10.2mm |
| b | 5.7mm |
| a | 5.7mm |
| Weight | 2.209 |
