SKU: PE-225FL-FLEX_10M
FLEXEPULSE 1 inch 2SN Hydraulic Hose - Allow 2-3 Days
- Regular price
- €84.74 ex VAT
- Sale price
- €84,74
- Regular price
-
ex VAT
Quantity Price Breaks
Description

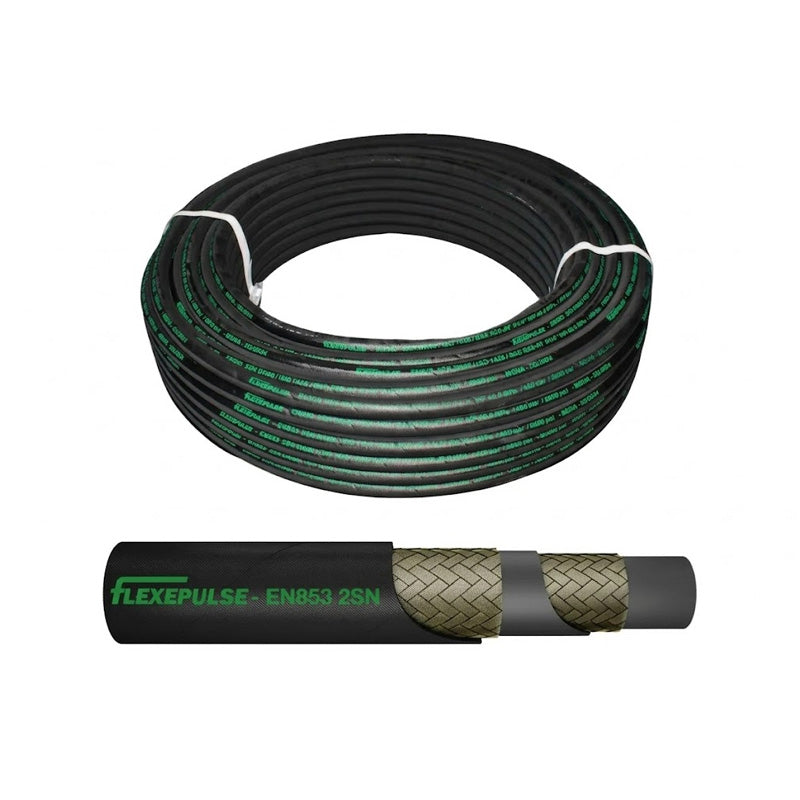

FLEXEPULSE 2SN Hydraulic Hose: This is a durable hose designed for medium to high-pressure hydraulic applications. Featuring a braided 2-wire construction with maximum-strength steel wire braids, it meets SAE 100 R2S, EN853 2SN, and ISO 1436-2SN standards, and is qualified for 400,000 impulse cycles. The hose's synthetic rubber core is resistant to hydraulic fluids, while its abrasion and ozone-resistant cover ensures long-lasting performance. Suitable for temperatures from -40°C to 100°C (up to 120°C intermittently), it pairs well with PF15/PF12 ferrules.
Benefits: High durability and strength, broad temperature and fluid compatibility, long-term performance
Technical
| Hose Size | = | 25 Din |
| Hose Size | = | 1 inch |
| Nominal Inside | = | 25.5mm |
| Nominal Hose OD | = | 34.8mm |
| Max. Working Pressure | = | 165 bar |
| Max. Working Pressure | = | 2393 psi |
| Min. Burst Pressure | = | 650 bar |
| Min. Burst Pressure | = | 9570 psi |
| Min. Bend Radius | = | 11.8 inch |
| Min. Bend Radius | = | 300mm |
| Weight | = | 1.442 kg |
