SKU: PESH19-JCS

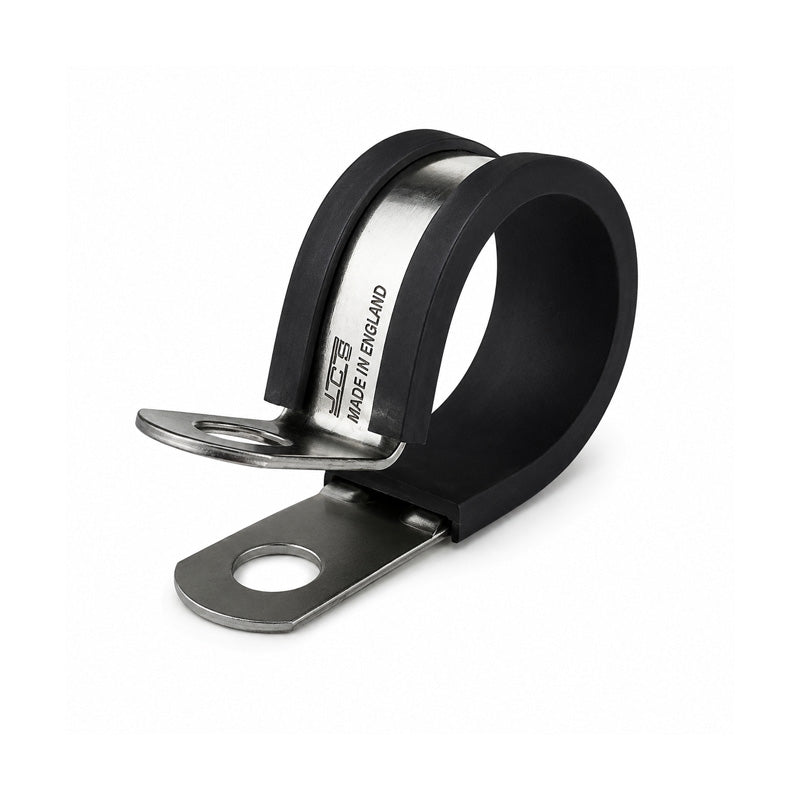

JCS PESH19 Hi-Temp 304 Stainless Steel P-Clip with TPE Liner Band 19mm Closed Diameter
JCS PESH19 Hi-Temp 304 Stainless Steel P-Clip with TPE Liner Band 19mm Closed Diameter
Out of stock
Share this product
Description
Description
High Temperature 304 Stainless Steel P-Clips with TPE160 Liner: JCS rubber-lined P-Clips are tough and durable, providing a simple and secure fixing solution for even the most challenging of environments. Supplied with a TPE160 rubber liner which prevents chafing or damage to the surface of the item being clamped. The P-Clip band features a special strengthening rib that keeps the clips flush with the surface to which it is bolted. The stainless version is made from marine quality 18/8 Stainless Steel. UV and ozone resistant TPE rubber liner absorbs vibration and prevents chafing of pipe or cable.
- Brand / Quality:
- JCS - High Quality
- Outside Diameter:
- 19mm
- Width:
- 23mm
Technical
Technical
| BS.No | 19 |
|---|---|
| Fastening | M10 |
| Dia Closed | 19mm |
| A | 13mm |
| B | 28mm |
| C | 0.9mm |
| D | 10.8mm |
| E | 20mm |
| F | 23mm |
| G | 12mm |
| Liner | TPE 160 (grey) |
| Service Temperature | -50 deg C to +160 deg C |
