SKU: PF35WF-SKF

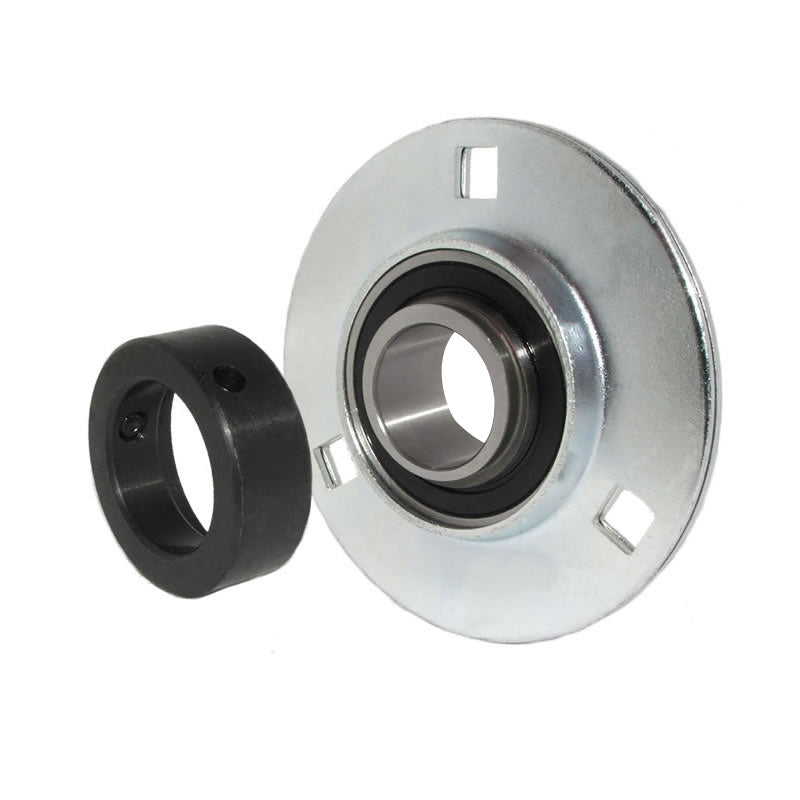

SKF PF35FM Pressed Steel Round Housing with Eccentric Locking Collar 35mm Insert
SKF PF35FM Pressed Steel Round Housing with Eccentric Locking Collar 35mm Insert
Out of stock
Description
Description
| SKF Round Flanged Y-bearing Units with Pressed Steel Housing and an Eccentric Locking Collar: These units are designed for simple applications with limited loads and speeds. These round flanged housings are made of pressed steel and have three or four square holes (depending on the size of the housing) for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- PF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 2.5mm |
| A2 | 10mm |
| B1 | 51.1mm |
| Da | 81mm |
| H | 122mm |
| J | 100mm |
| N | 11mm |
| G | 10mm |
| T | 34.8mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Permissible housing load | 6.5 kN |
| Weight | 0.78 kg |
