SKU: PHR-1-1/4

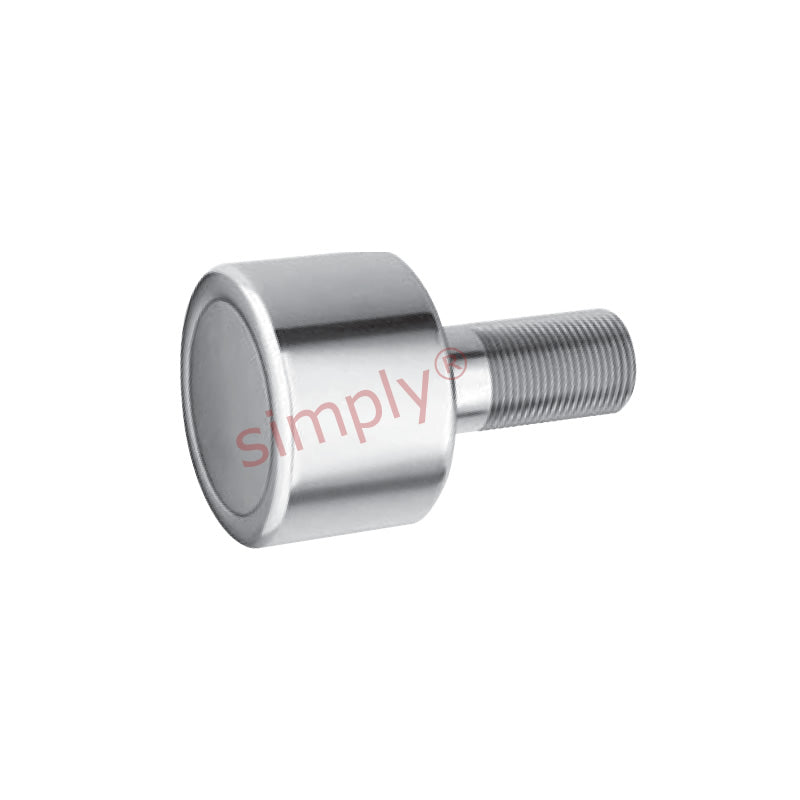

Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter
- Regular price
- €85.64 ex VAT
- Sale price
- €85,64
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.22
4
€71.94
9
€71.08
19
€70.22
29
€69.37
39
€68.51
49
€64.23
59
€63.37
249
€62.52
499
€61.66
999
€59.95
SKU:
PHR-1-1/4
Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter
- Regular price
- €85.64 ex VAT
- Sale price
- €85,64
- Regular price
-
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 1.25 inch |
| B | = | 0.844 inch |
| C | = | 0.5 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 1/2-20 UNF |
| G | = | 0.625 inch |
| S | = | 0.031 inch |
| Basic dynamic rating | = | 1350 lbs |
| Dynamic thrust load rating | = | 370 lbs |
| Max static capacity | = | 600 lbs |
