Chiavette PKSAL12/SL12 Aluminium Clevis Pin and Retainer 17x30mm - Allow 7-10 Days
Chiavette PKSAL12/SL12 Aluminium Clevis Pin and Retainer 17x30mm - Allow 7-10 Days
Out of stock
Description
Description

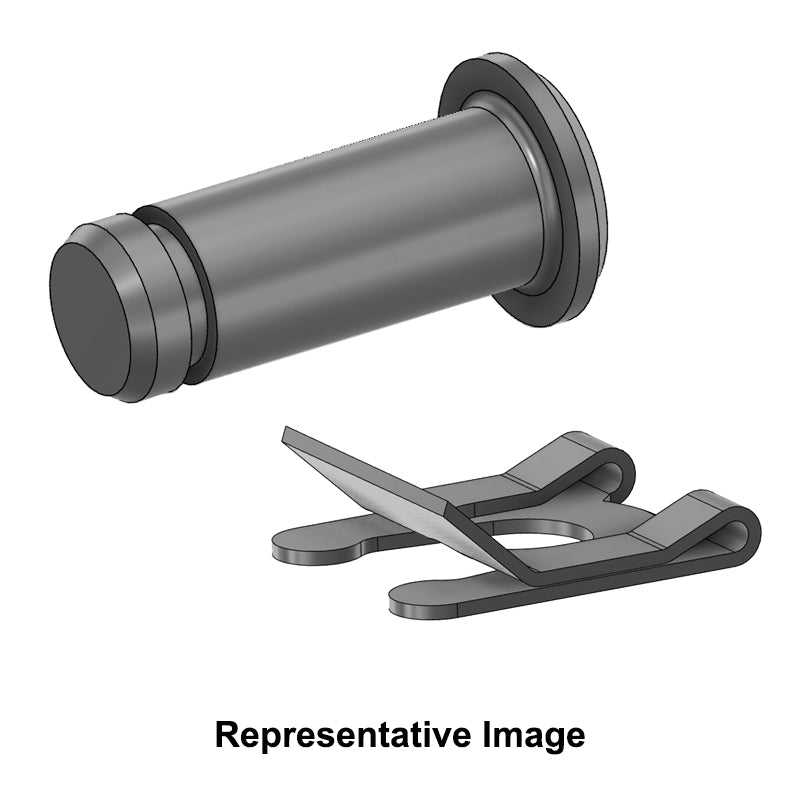

Chiavette Aluminium Clevis Pin with Retainer: This kit includes a grooved aluminium clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 12mm
- Length:
- 30mm
- Material:
- Aluminium
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKSAL12+Pin>PKSAL12</a> |
| Material | Aluminium |
| d1 | 12mm |
| D | 17mm |
| k | 3mm |
| z | 1.5mm |
| z1 | 1.3mm |
| r | 0.5mm |
| d2 | 9mm |
| m | 1.15mm (+0.1mm) |
| l1 | 24.5mm (+0.3mm) |
| l | 30mm (+0.3mm) |
| Weight | 0.01kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SL12+Retainer>SL12</a> |
| Material | Spring Steel |
| d1 | 12mm |
| a | 22mm |
| h | 26mm |
| h1 | 12mm |
| b | 5mm |
| s | 0.5mm |
| d2 | 9mm |
| m | 1.15mm (+0.1mm) |
| n | 5mm (+0.30mm) |
| z1 | 1.3mm |
| Max axial Load | 4.8 kN |
| Weight | 0.28kg |
