SKU: PNA22/44-EU

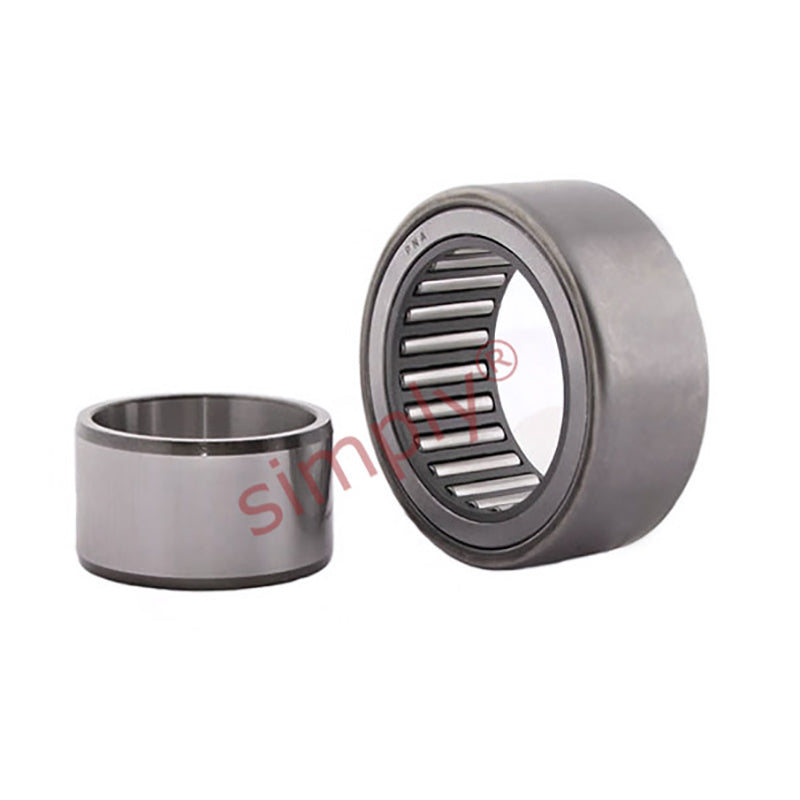

PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
Regular price
€55,17
ex VAT
Regular price
Sale price
€55,17
ex VAT
In stock
Price Break
10+
€41,93
19+
€39,57
29+
€39,10
39+
€38,63
49+
€38,16
74+
€37,69
99+
€35,33
199+
€34,86
249+
€34,39
499+
€33,92
999+
€32,98
Quantity
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 44mm
- Width:
- 20mm
Technical
Technical

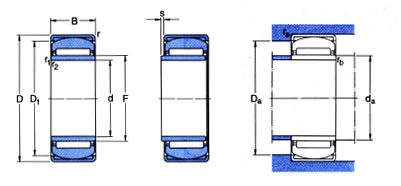

| d | 22mm |
|---|---|
| D | 44mm |
| B | 20mm |
| Dynamic load C | 22000 N |
| Static load Co | 36500 N |
| Fatigue load limit Pu | 4550 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| F | 28mm |
| D1 | 38.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 24mm |
| Da min | 37.5mm |
| Da max | 39mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 150 g |
