SKU: Q.1013

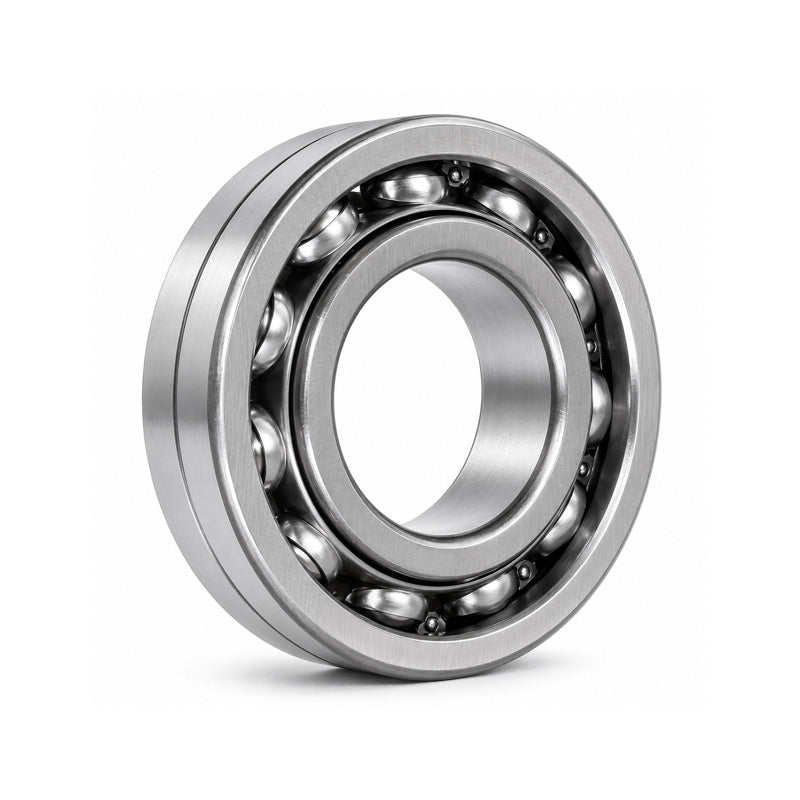

Premier Budget Q1013 Four Point Contact Ball Bearing (Two Part Outer Race) 65x100x18mm
Premier Budget Q1013 Four Point Contact Ball Bearing (Two Part Outer Race) 65x100x18mm
Out of stock
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The outer raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| Dynamic Load | 67 kN |
| Static Load | 5488 kN |
| Speed in grease max | 4410 rpm |
| Speed in oil max dia | 5488 rpm |
| Weight | 0.56 kg |
