SKU: Q.204

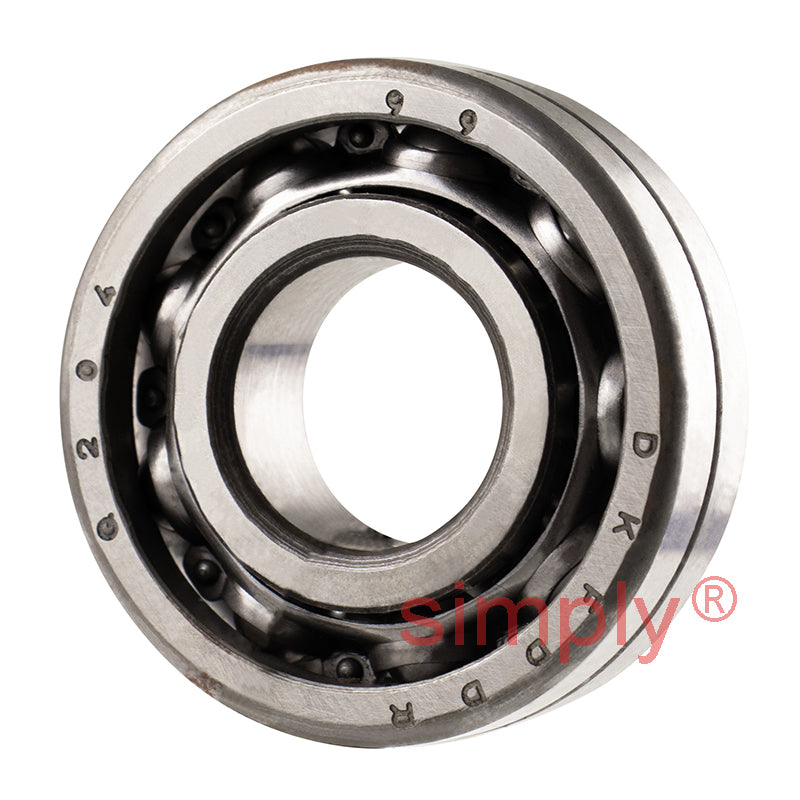

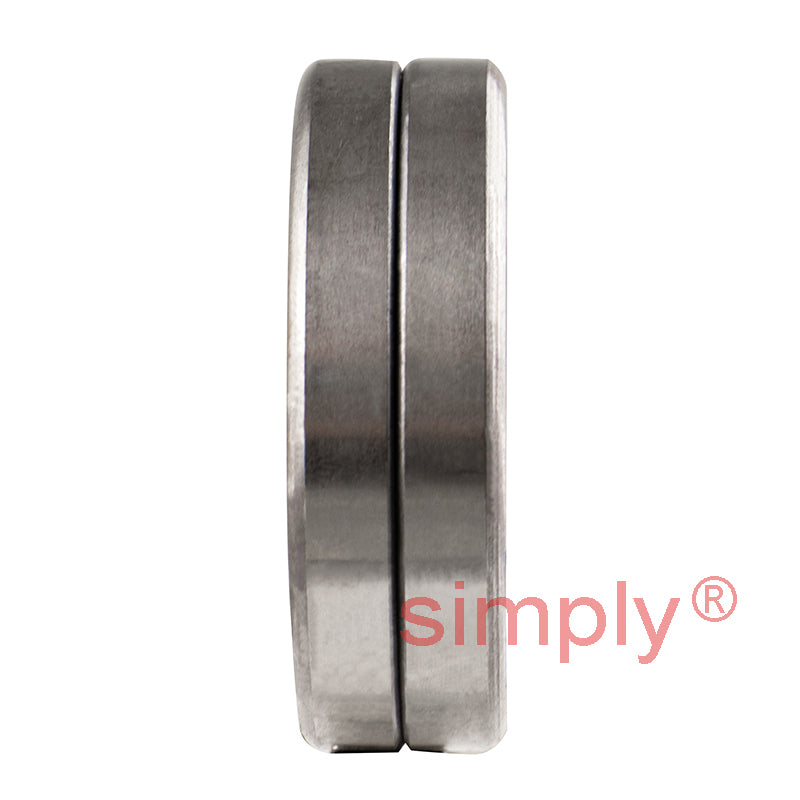

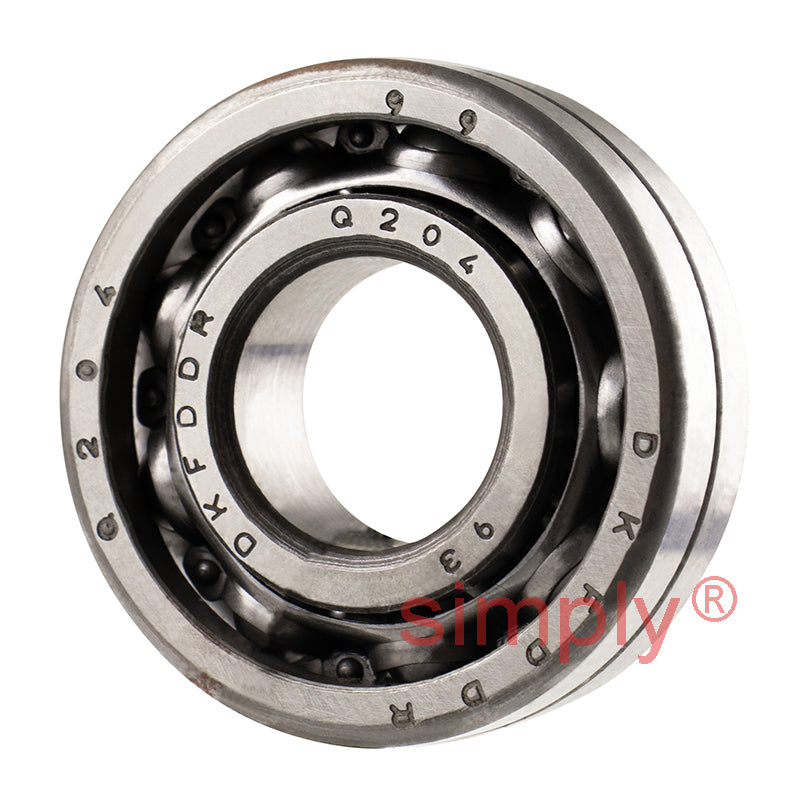

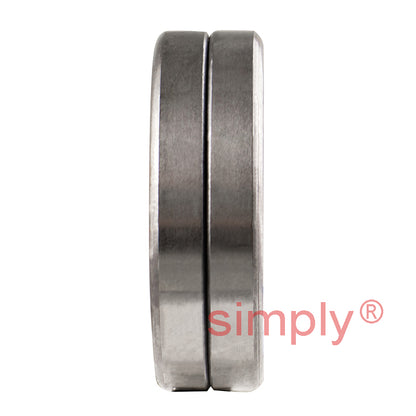

Premier Budget Q204 Four Point Contact Ball Bearing (Two Part Outer Race) 20x47x14mm
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
In stock
Quantity Price Breaks
10
€38.80
19
€36.62
29
€36.19
39
€35.75
49
€35.32
74
€34.88
99
€32.70
199
€32.26
249
€31.83
499
€31.39
999
€30.52
SKU:
Q.204
Premier Budget Q204 Four Point Contact Ball Bearing (Two Part Outer Race) 20x47x14mm
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The outer raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.

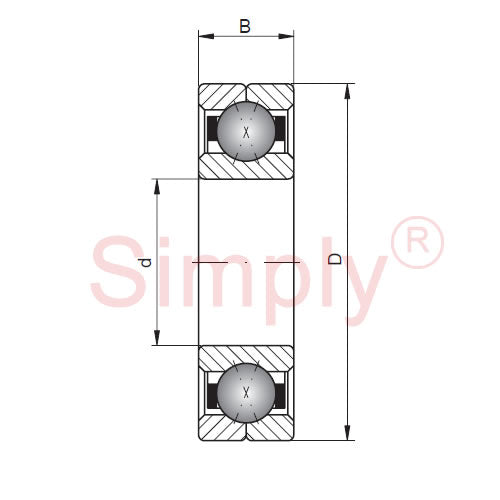

Technical
| d | = | 20mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic Load | = | 18.7 kN |
| Static Load | = | 15582 kN |
| Speed in grease max | = | 10927 rpm |
| Speed in oil max dia | = | 15582 rpm |
| Weight | = | 0.134 kg |
