SKU: RA010-NPP-INA

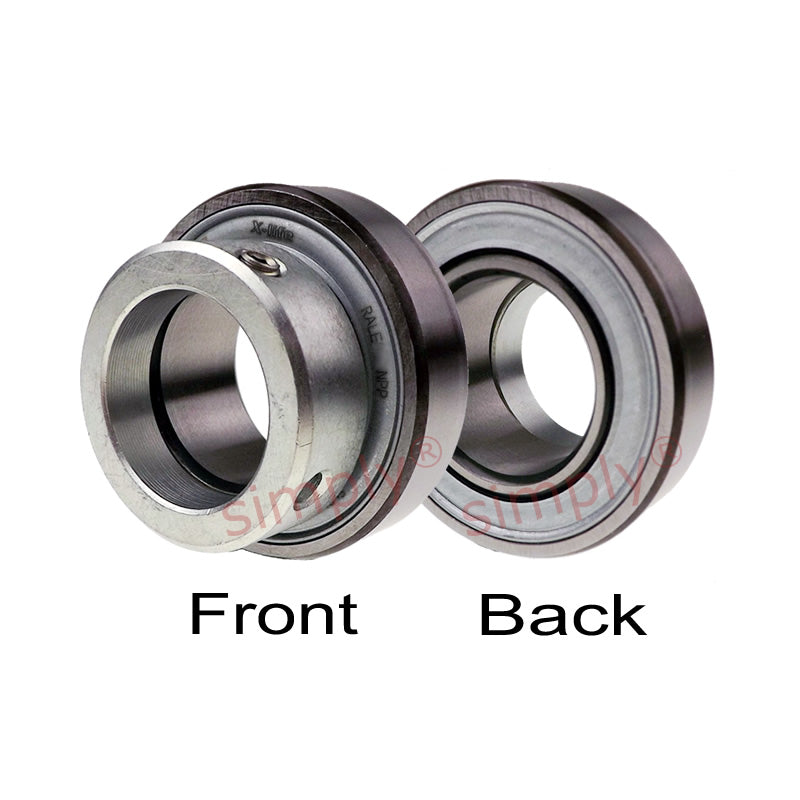

INA RA010NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 15.88x40x28.6mm
INA RA010NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 15.88x40x28.6mm
Out of stock
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Width:
- 28.6mm
Technical
Technical
| d | 15.88mm |
|---|---|
| d | 5/8 inch |
| D | 40mm |
| B1 | 28.6mm |
| B | 19mm |
| C | 12mm |
| d2 | 23mm |
| d3 max | 28mm |
| S | 6.5mm |
| W | 1/8 inch |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Weight | 0.12 kg |
