SKU: RAE20-NPP-NR-INA

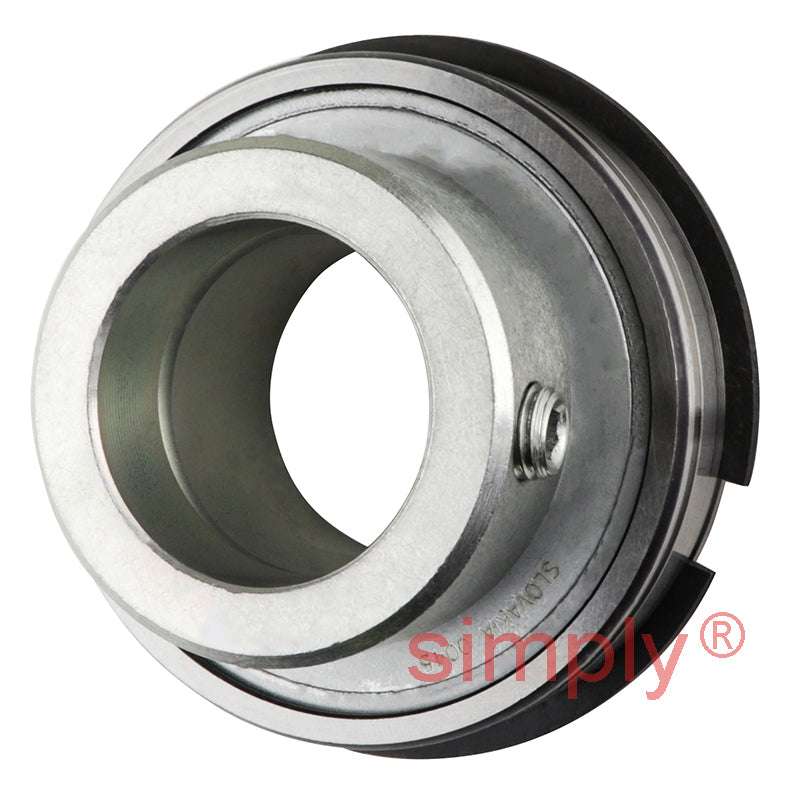

INA RAE20XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 20x47x31mm

Name: INA RAE20XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 20x47x31mm
Brand: INA
SKU: RAE20-NPP-NR-INA
Price: 21.95 EUR
Availability: InStock

€21,95 ex VAT

Sale Sold out

In stock

Price Break

3+ €16,68

5+ €15,74

10+ €15,55

15+ €15,37

20+ €15,18

30+ €14,99

40+ €14,06

50+ €13,87

60+ €13,68

75+ €13,49

100+ €13,12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Accommodates snap rings.

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 47mm
Width:: 31mm

Technical

d	20mm
D	47mm
B1	31mm
A	3.58mm
Tolerance	-0.25
a	1.12mm
B	21.4mm
C	14mm
D2	52.7mm
d2	26.9mm
d3 max	33mm
S	7.5mm
W	3mm
Dynamic load Cr	12800 N
Static load C0r	6600 N
Weight	0.17 kg
