SKU: RAXZ540-MB

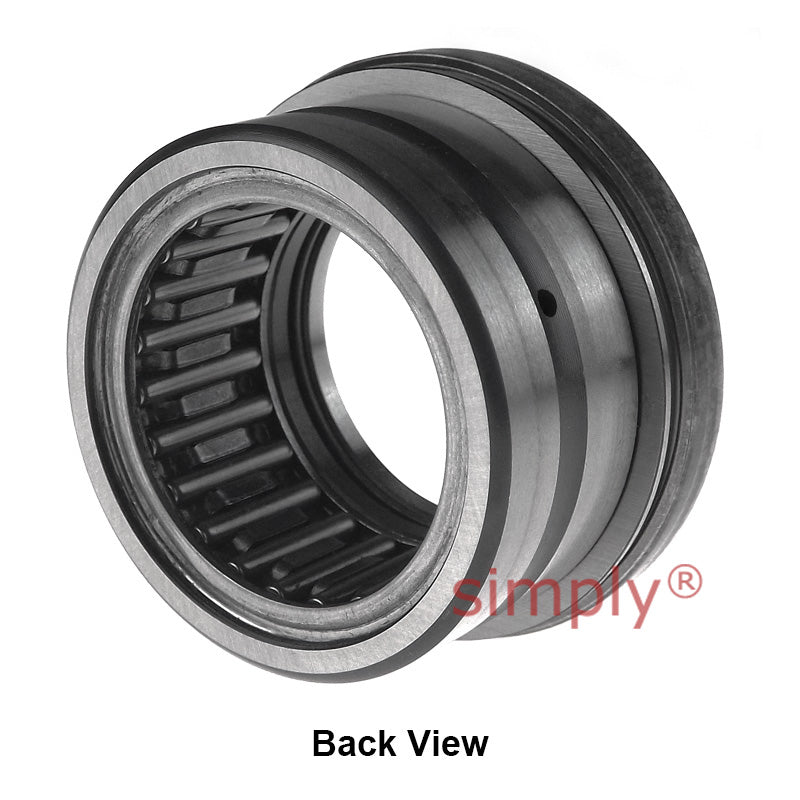

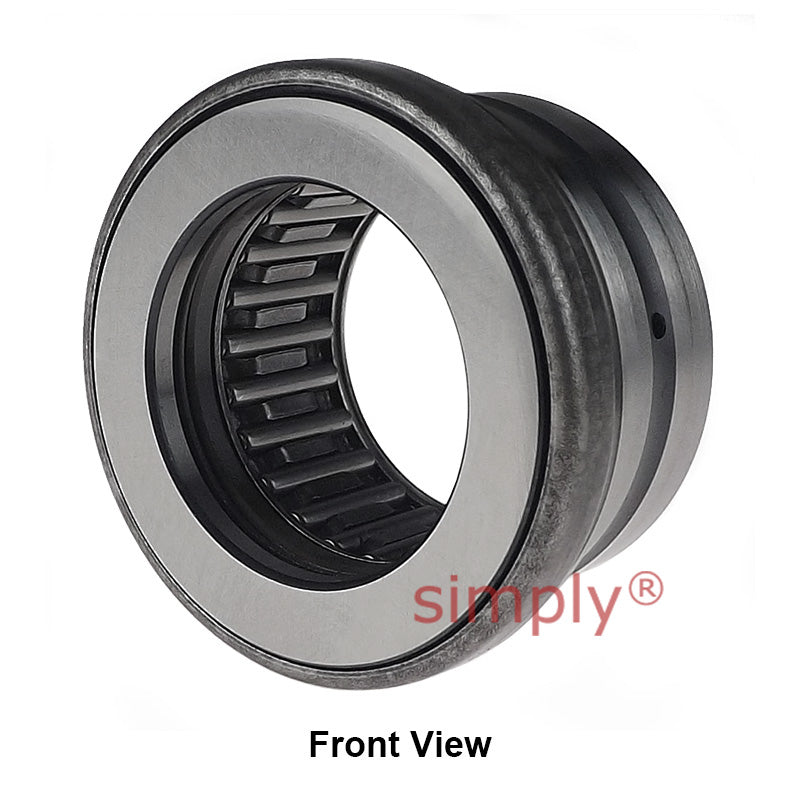

Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Regular price
€544,46
ex VAT
Regular price
Sale price
€544,46
ex VAT
In stock
Price Break
10+
€413,76
19+
€390,52
29+
€385,87
39+
€381,22
49+
€376,57
74+
€371,92
99+
€348,67
199+
€344,03
249+
€339,38
499+
€334,73
999+
€325,43
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 31mm |
| da | 40mm |
| Da | 61mm |
| C1 | 13mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 23.8 kN |
| Radial static load | 47 kN |
| Axial dynamic load | 46 kN |
| Axial static load | 129 kN |
| Speed rating | 5 rpm |
| Weight | 0.218 kg |
