SKU: RCJT25-XL-N-FA125-INA

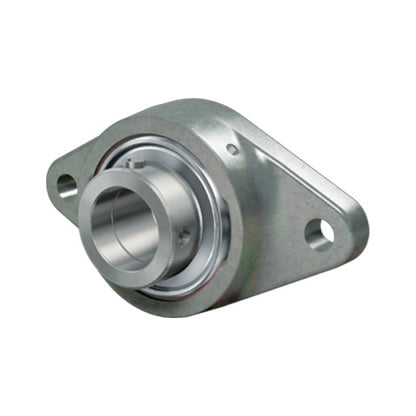

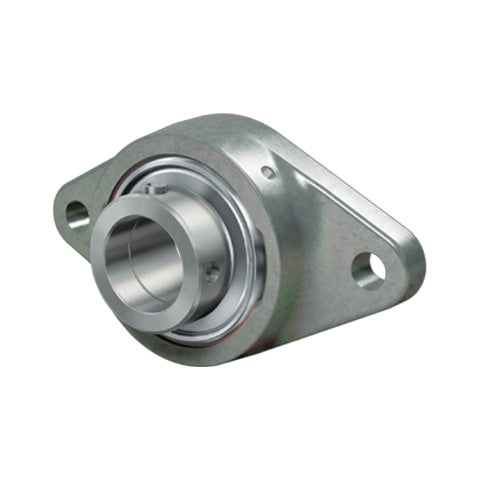

INA RCJT25XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
INA RCJT25XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 25mm Bore
Regular price
€60,24
ex VAT
Regular price
Sale price
€60,24
ex VAT
In stock
Price Break
4+
€45,78
9+
€43,21
19+
€42,70
29+
€42,18
39+
€41,67
49+
€41,15
59+
€38,58
69+
€38,07
79+
€37,55
89+
€37,04
99+
€36,01
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RCJT
- Bolt Hole Centres:
- 99mm
Technical
Technical

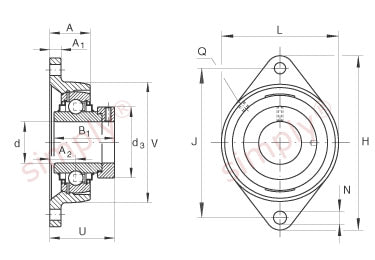

| d | 25mm |
|---|---|
| H | 124mm |
| U | 46mm |
| A | 26.5mm |
| A1 | 11mm |
| A2 | 19mm |
| B1 | 44.5mm |
| d3 max | 37.5mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| Q | M6mm |
| V | 70mm |
| Mass | 0.62 kg |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | CJT05 |
| Designation of bearing | GE25-XL-KRR-B-FA125 |
| Bearing end cap, closed design (to be ordered separately) | KASK05 |
