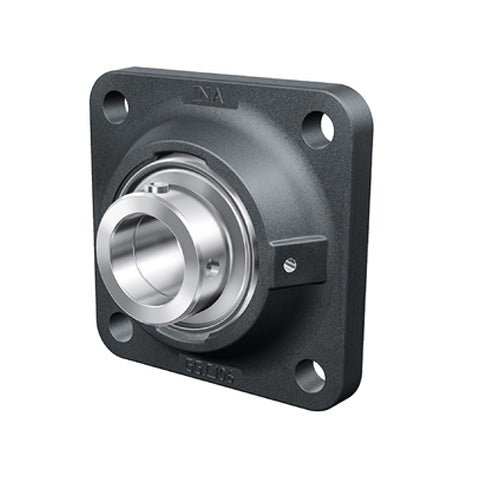

• INA RCJY30XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 30mm Bore
  • INA
1 2

SKU: RCJY30-XL-N-INA

INA RCJY30XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 30mm Bore

INA RCJY30XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 30mm Bore
€47,35 ex VAT
€47,35 ex VAT
Sale Sold out

In stock

Price Break
4+ €36,05
9+ €34,03
19+ €33,62
29+ €33,22
39+ €32,81
49+ €32,41
59+ €30,38
69+ €29,98
79+ €29,57
89+ €29,17
99+ €28,36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
RCJY
Bolt Hole Centres:
82.5mm
Technical
d 30mm
L 108mm
U 42.2mm
A 29mm
A1 12mm
A2 20mm
B 38.1mm
J 82.5mm
N 11.5mm
Q M6
V 85mm
Mass 1.1 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing CJ06
Designation of bearing GYE30-XL-KRR-BBearing end cap, closed design (to be ordered separately)
KASK06 N/A
