SKU: RCSMA30/65-FA106-INA
INA RCSMB30/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x65.1x26.5mm
INA RCSMB30/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x65.1x26.5mm
Out of stock
Description
Description
|

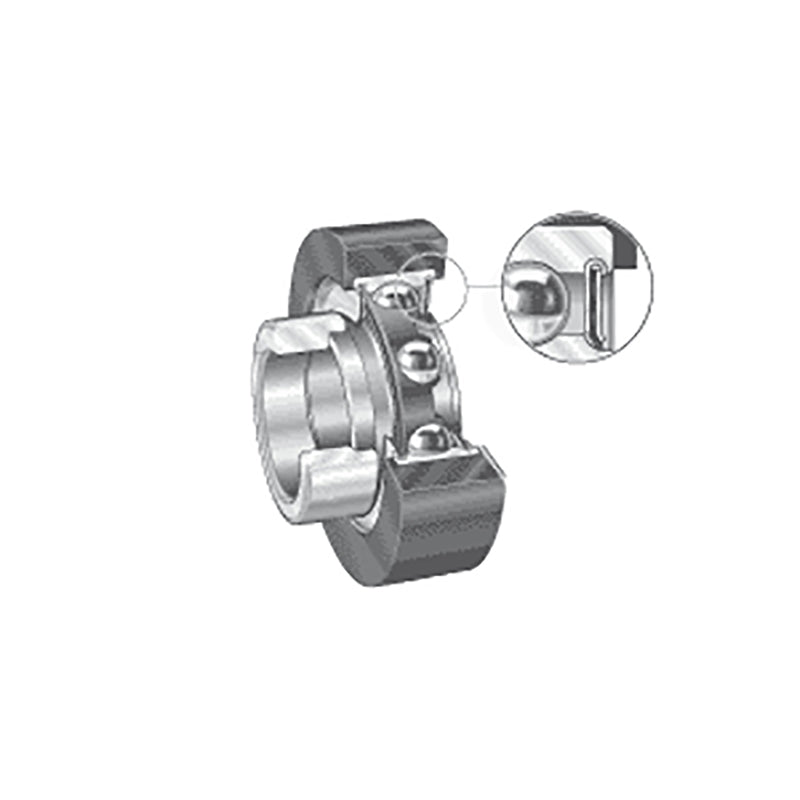

INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 65.1mm
- Width:
- 26.5mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 65.1mm |
| B1 | 26.5mm |
| C | 25.4mm |
| D2 | 47.6mm |
| d3 max | 42.5mm |
| P | 15mm |
| S1 | 20mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 1400 N |
| Dynamic load Cr | 13200 N |
| Static load C0r | 8300 N |
| Designation of bearing | 331065 |
| Weight | 0.32 kg |
