SKU: RM25FF-MB

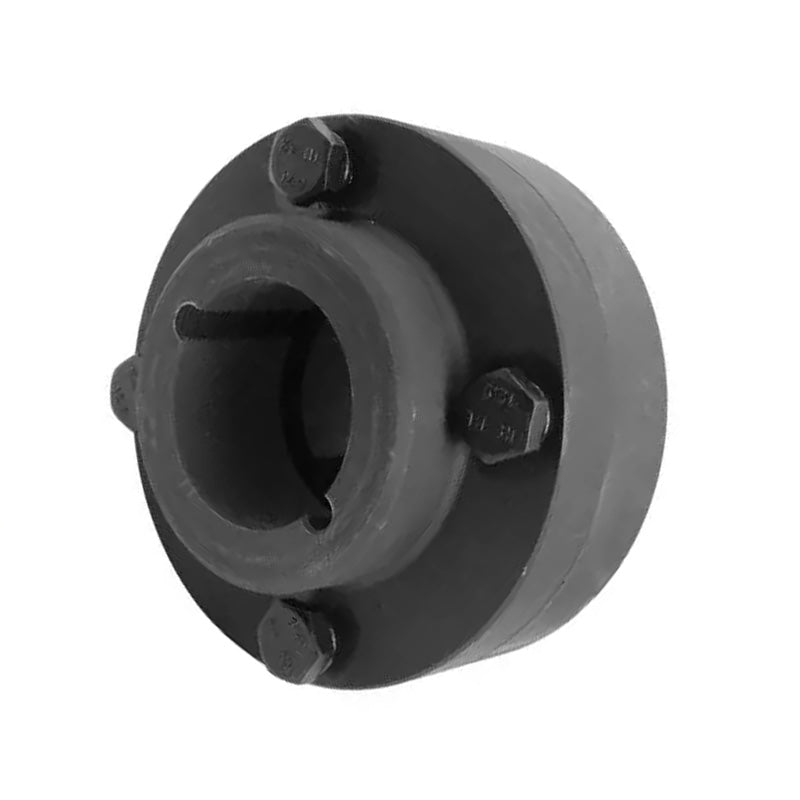

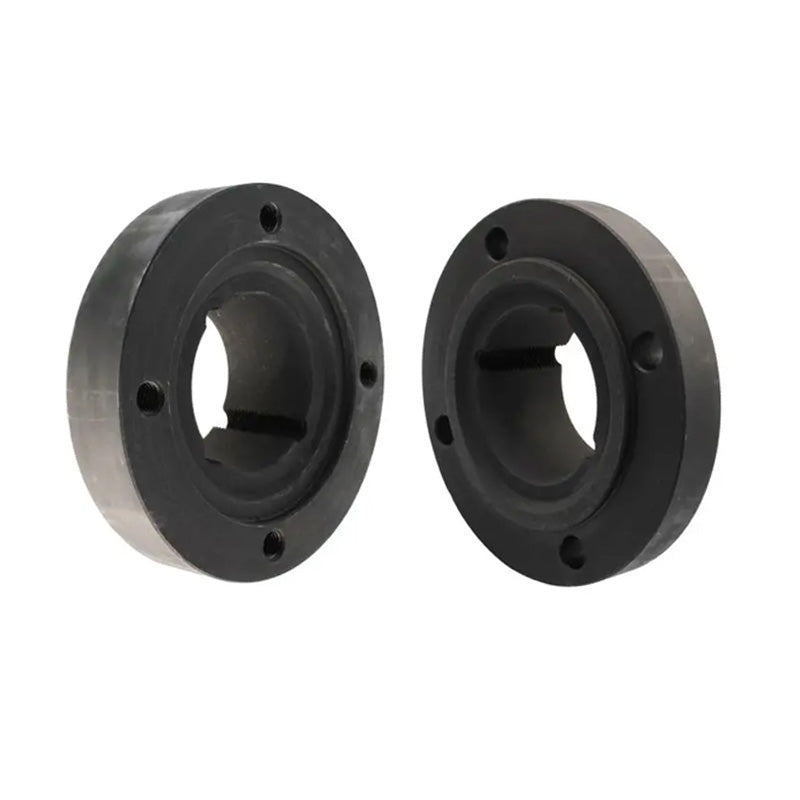

Major Branded RM25FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 60mm / 2-1/2 inch
- Regular price
- €130.66 ex VAT
- Sale price
- €130,66
- Regular price
-
In stock
Quantity Price Breaks
10
€116.29
19
€109.75
29
€108.45
39
€107.14
49
€105.83
74
€104.53
99
€98.00
199
€96.69
249
€95.38
499
€94.08
999
€91.46
SKU:
RM25FF-MB
Major Branded RM25FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 60mm / 2-1/2 inch
- Regular price
- €130.66 ex VAT
- Sale price
- €130,66
- Regular price
-
Description
Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
Technical
| Bush | = | 2517< |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+2517" |
| > | = | [Click Here]< |
| /a> | = | |
| Max Bore Size | = | 60mm |
| Inch | = | 2-1/2 inch |
| A | = | 178mm |
| C | = | 51mm |
| D | = | 123mm |
| E | = | 45mm |
| F Nominal | = | 127mm |
| G Nominal | = | 149mm |
| H & | = | clubs |
| = | 7mm | |
| J & | = | spades |
| = | 48mm | |
| L | = | 97mm |
| Mass & | = | hearts |
| = | 11kg |
