SKU: RM35HF-MB

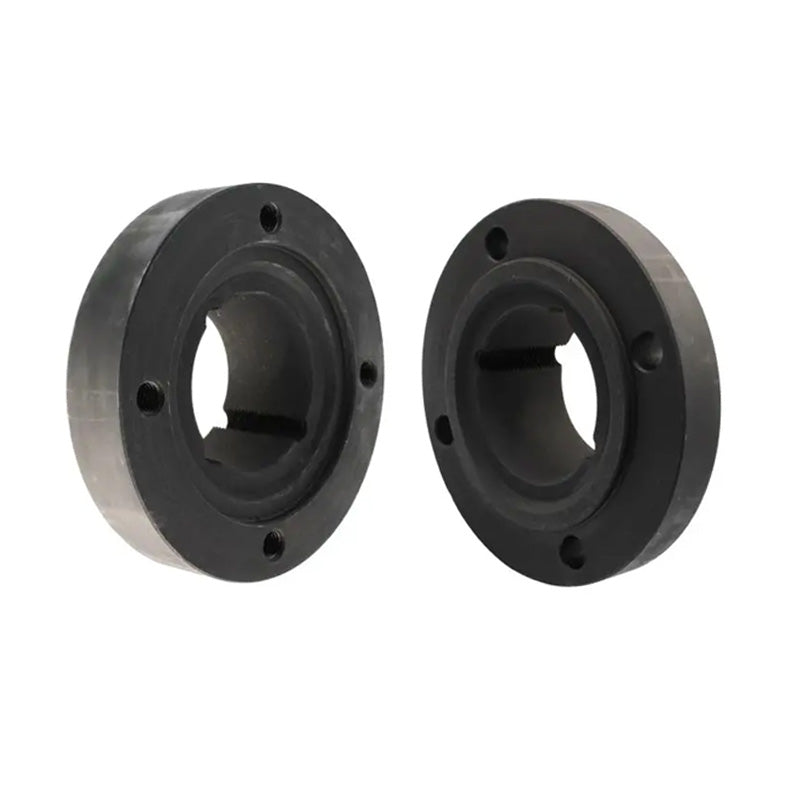

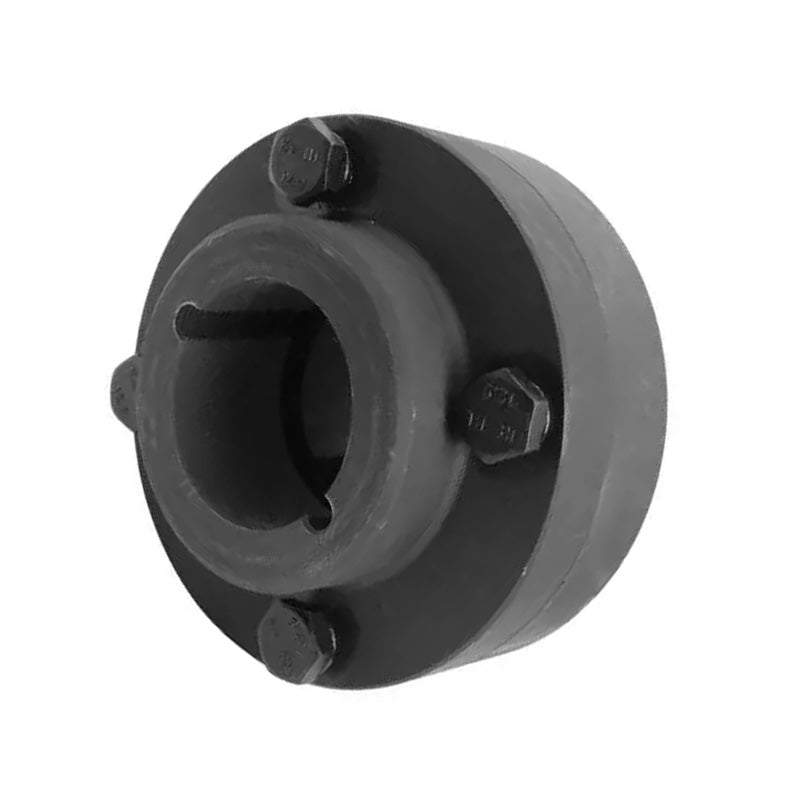

Major Branded RM35HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 100mm / 4 inch
- Regular price
- €257.71 ex VAT
- Sale price
- €257,71
- Regular price
-
In stock
Quantity Price Breaks
10
€229.36
19
€216.48
29
€213.90
39
€211.32
49
€208.75
74
€206.17
99
€193.28
199
€190.71
249
€188.13
499
€185.55
999
€180.40
SKU:
RM35HF-MB
Major Branded RM35HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 100mm / 4 inch
- Regular price
- €257.71 ex VAT
- Sale price
- €257,71
- Regular price
-
Description
Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.
Technical
| Bush | = | 3525< |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+3525" |
| > | = | [Click Here]< |
| /a> | = | |
| Max Bore Size | = | 100mm |
| Inch | = | 4 inch |
| A | = | 248mm |
| C | = | 75mm |
| D | = | 178mm |
| E | = | 65mm |
| F Nominal | = | 178mm |
| G Nominal | = | 213mm |
| H & | = | clubs |
| = | 7mm | |
| J & | = | spades |
| = | 67mm | |
| L | = | 137mm |
| Mass & | = | hearts |
| = | 34kg |
