SKU: RNA69/32R-NTN

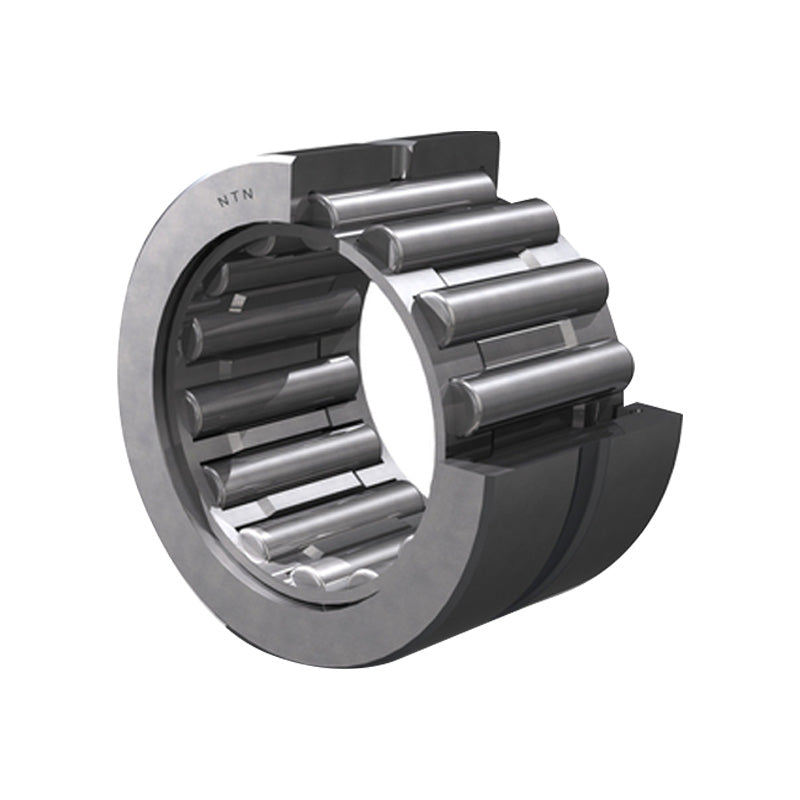

NTN RNA69/32R Machined Needle Roller Bearing no Shaft Sleeve 40x52x36mm
NTN RNA69/32R Machined Needle Roller Bearing no Shaft Sleeve 40x52x36mm
Regular price
€33,59
ex VAT
Regular price
Sale price
€33,59
ex VAT
In stock
Price Break
3+
€25,53
4+
€24,09
9+
€23,80
19+
€23,52
49+
€23,23
99+
€22,94
499+
€21,51
999+
€21,22
1999+
€20,94
2999+
€20,65
4999+
€20,08
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN Needle Roller Bearings: These bearings deliver exceptional performance in compact applications, offering high load capacity, low friction, and long service life. Precision-engineered with high-quality needle rollers and advanced cage designs, these bearings ensure smooth, efficient operation even under heavy radial loads. Ideal for automotive transmissions, industrial machinery, power tools, and robotic systems, NTN bearings are trusted worldwide for their durability, accuracy, and consistent reliability in demanding environments.
Benefits: High performance, economical, rigid machined outer ring
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 36mm
Technical
Technical

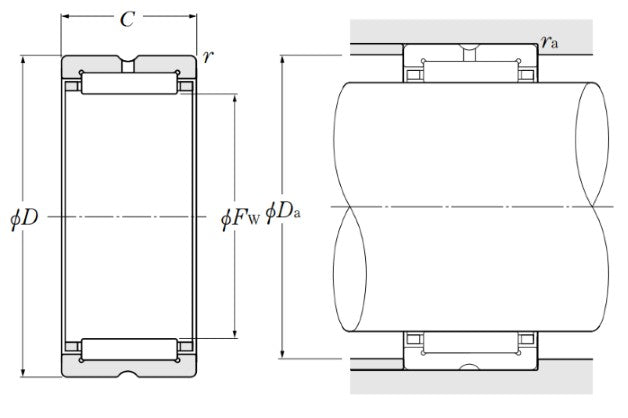

| Fw - Under rollers diameter | 40mm |
|---|---|
| D - Outside diameter | 52mm |
| C - Width of bearing, drawn cup or outer ring | 36mm |
| rs - Minimum fillet radius | 0.6mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 3mm |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 47.5 kN |
| C0r - Static load rating | 82 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
| Da max - Outer ring maximum shoulder diameter | 48mm |
| ras max - Maximum shaft & housing fillet radius | 0.6mm |
