SKU: RNAO50x65x40-MB

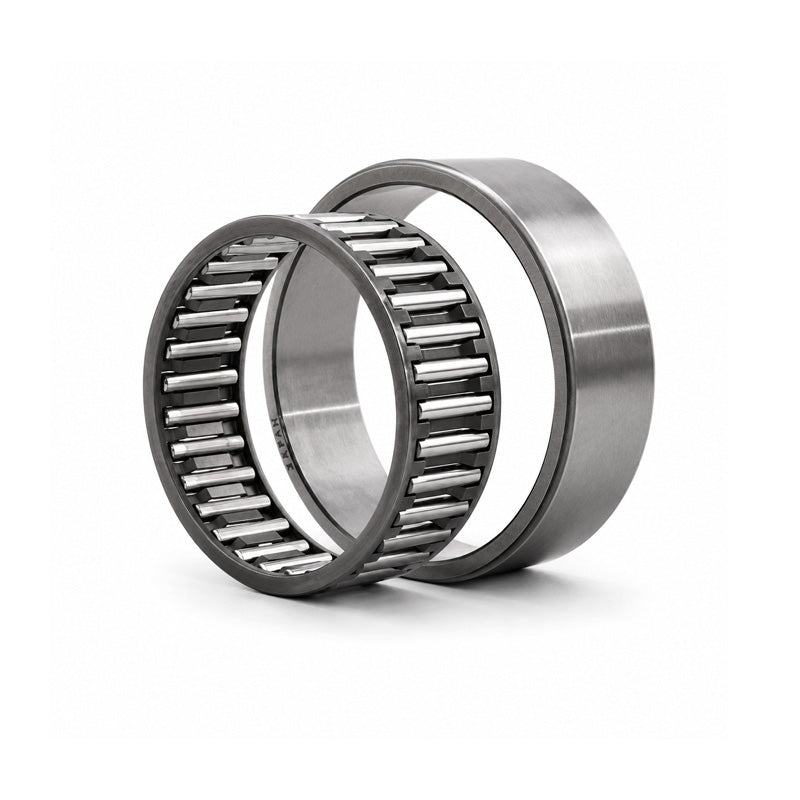

Major Brand RNAO50x65x40 Needle Roller Bearings with Machined Rings without an Inner Ring
Major Brand RNAO50x65x40 Needle Roller Bearings with Machined Rings without an Inner Ring
Regular price
€72,58
ex VAT
Regular price
Sale price
€72,58
ex VAT
In stock
Price Break
10+
€55,26
19+
€52,15
29+
€51,53
39+
€50,91
49+
€50,29
74+
€49,67
99+
€46,57
199+
€45,94
249+
€45,32
499+
€44,70
999+
€43,46
Quantity
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 40mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 65mm |
| C | 40mm |
| Dynamic load | 58300 N |
| Static load | 125000 N |
| Fatigue load limit Pu | 15300 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| E | 58mm |
| r1r2 min | 0.3mm |
| da | 57.2mm |
| Da | 58.5mm |
| Db | 51mm |
| ra max | 0.3mm |
| Weight | 360 g |
