SKU: RNAO90x105x26-MB
Major Brand RNAO90x105x26 Needle Roller Bearings with Machined Rings without an Inner Ring
Major Brand RNAO90x105x26 Needle Roller Bearings with Machined Rings without an Inner Ring
Out of stock
Description
Description
|

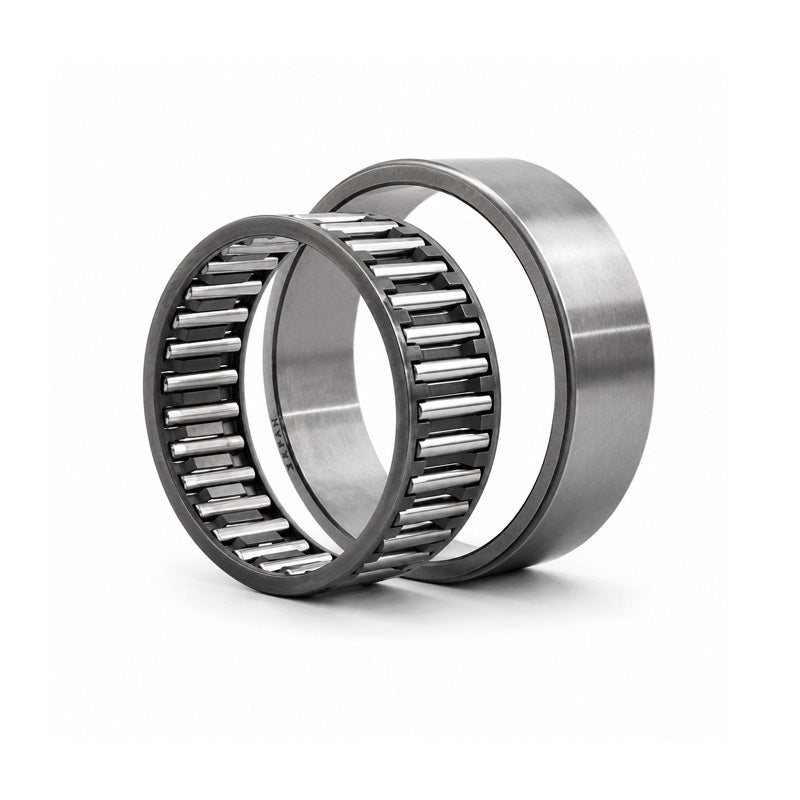

Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 105mm
- Width:
- 26mm
Technical
Technical
| Fw | 90mm |
|---|---|
| D | 105mm |
| C | 26mm |
| Dynamic load | 58300 N |
| Static load | 150000 N |
| Fatigue load limit Pu | 18600 N |
| Speed in grease | 3200 rpm |
| Speed in oil | 4500 rpm |
| E | 98mm |
| r1r2 min | 1mm |
| da | 97.2mm |
| Da | 99mm |
| Db | 91mm |
| ra max | 1mm |
| Weight | 370 g |
