SKU: RNU304-MB

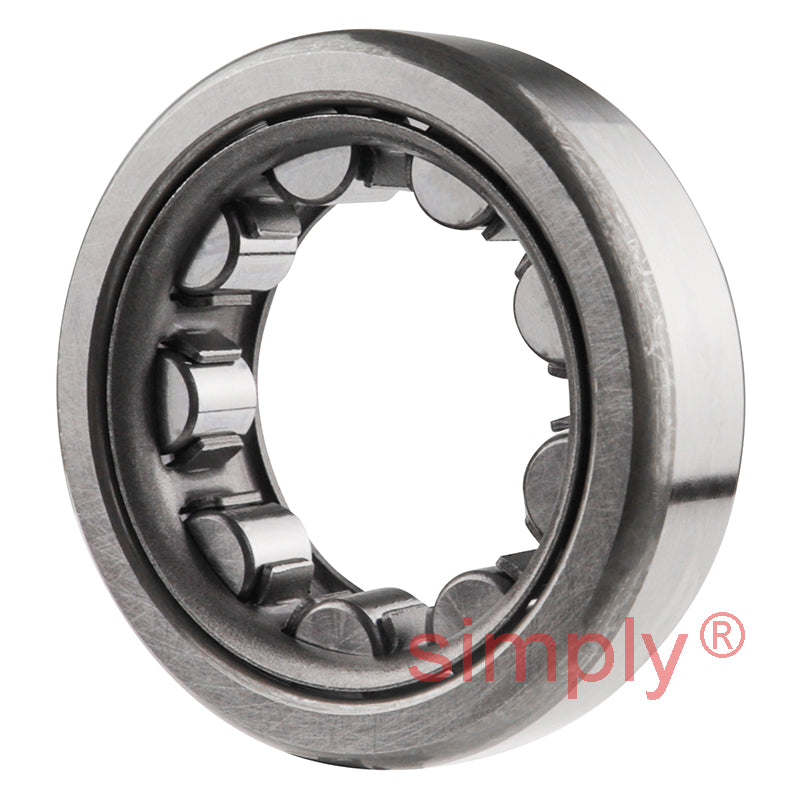

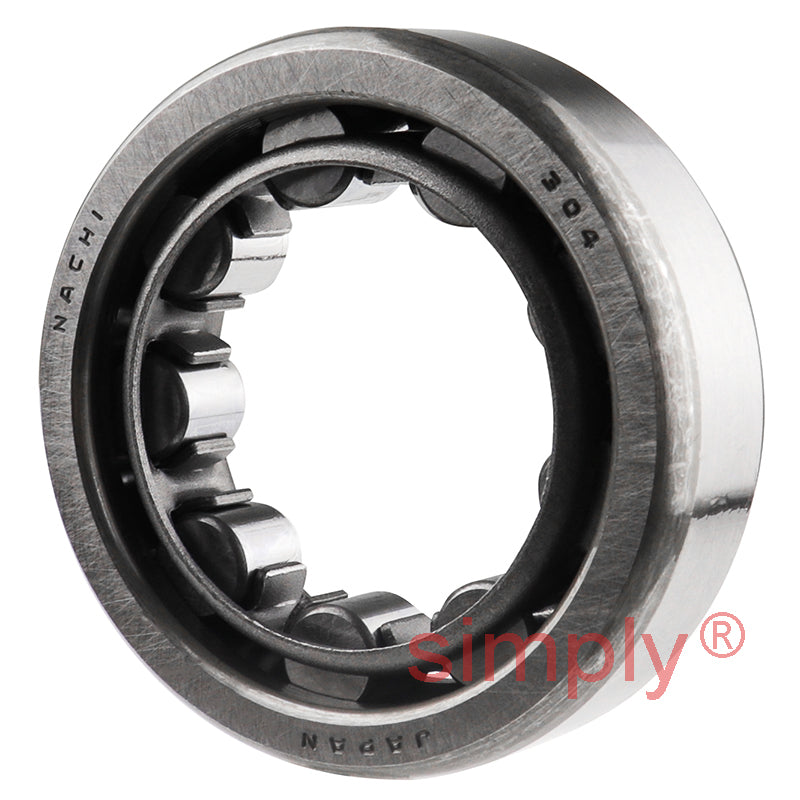

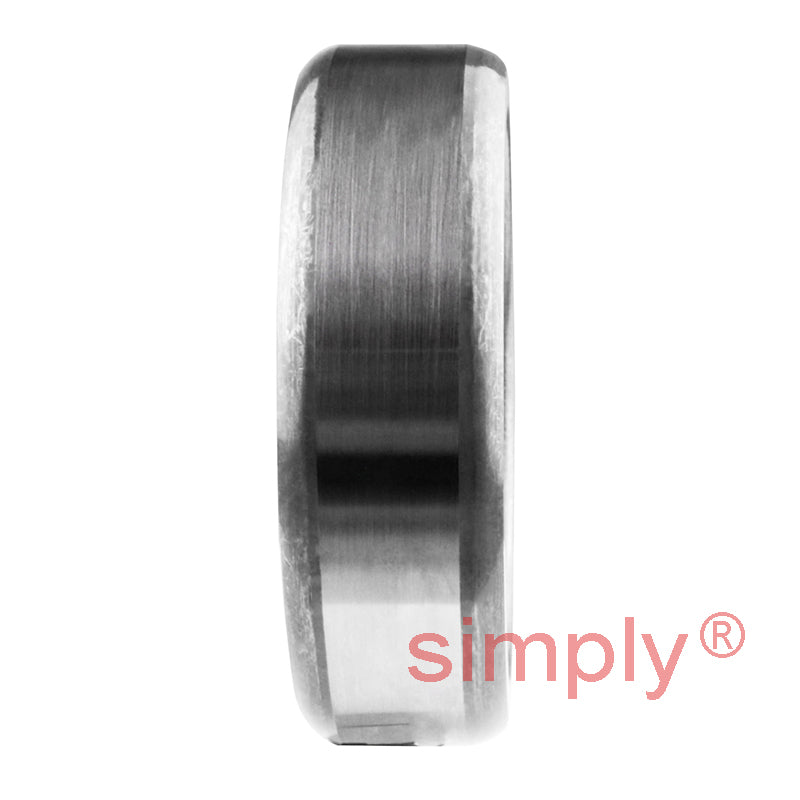

Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
- Regular price
- €58.87 ex VAT
- Sale price
- €58,87
- Regular price
-
In stock
Quantity Price Breaks
10
€52.39
19
€49.45
29
€48.86
39
€48.27
49
€47.68
74
€47.10
99
€44.15
199
€43.56
249
€42.98
499
€42.39
999
€41.21
SKU:
RNU304-MB
Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
- Regular price
- €58.87 ex VAT
- Sale price
- €58,87
- Regular price
-
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
Technical
| d | = | 28.5mm |
| D | = | 52mm |
| C | = | 15mm |
| C1 | = | 3.5mm |
| Dynamic load | = | 20.5 kN |
| Static load | = | 10.4 kN |
| Fatigue load limit Pu | = | 2080 kN |
| Reference speed | = | 15000rpm |
| Limiting speed | = | 18000rpm |
| r1,2min | = | 1.1mm |
| Weight | = | 0.11kg |
