SKU: S-UCP205D1-NTN

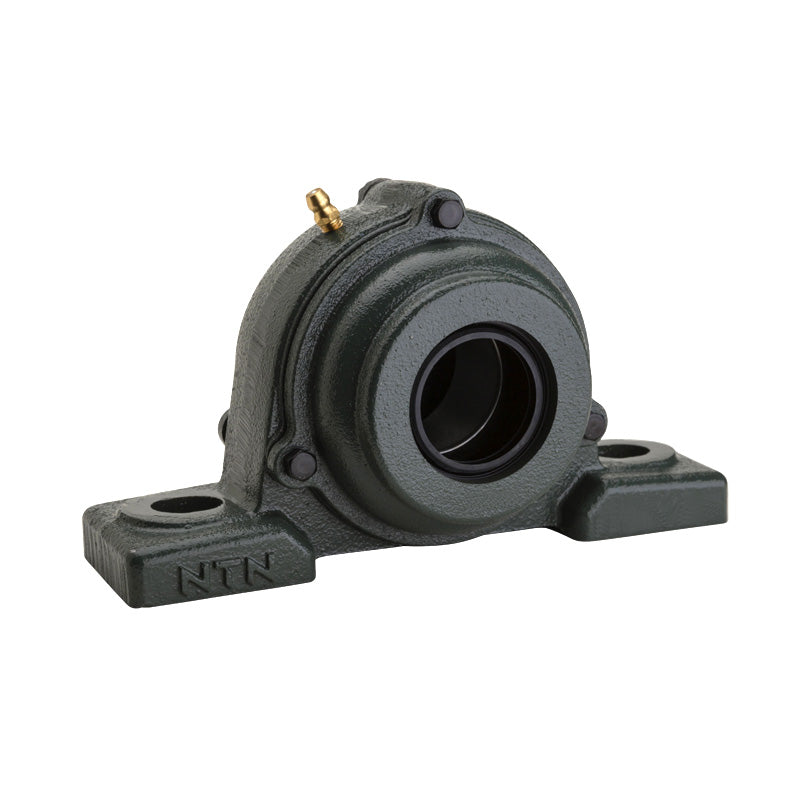

NTN S-UCP205D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCP205D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€36,18
ex VAT
Regular price
Sale price
€36,18
ex VAT
In stock
Price Break
3+
€27,49
4+
€25,95
9+
€25,64
19+
€25,33
49+
€25,02
99+
€24,71
499+
€23,17
999+
€22,86
1999+
€22,55
2999+
€22,24
4999+
€21,62
Quantity
Couldn't load pickup availability
Description
Description
UCP200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCP
- Bolt Hole Centres:
- 105mm
Technical
Technical

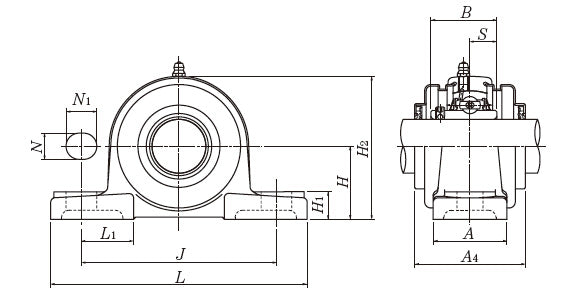

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 36.5mm |
| L | 140mm |
| J | 105mm |
| A | 38mm |
| N | 13mm |
| N<sub>1</sub> | 16mm |
| H<sub>1</sub> | 15mm |
| H<sub>2</sub> | 71mm |
| L<sub>1</sub> | 42mm |
| B | 34.1mm |
| S | 14.3mm |
| A<sub>4</sub> | 57mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 0.9 kg |
