SKU: SA80ES-ISB
ISB SA80ES Right Hand Maintenance Required Steel/Steel Plain Female Rod End M80 Thread
ISB SA80ES Right Hand Maintenance Required Steel/Steel Plain Female Rod End M80 Thread
Equivalent to: SA80ES
Out of stock
Share this product
Description
Description
SI - SA Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M64x4
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Bore:
- 80
- Inside Diameter:
- 80
- Material:
- Steel/Steel

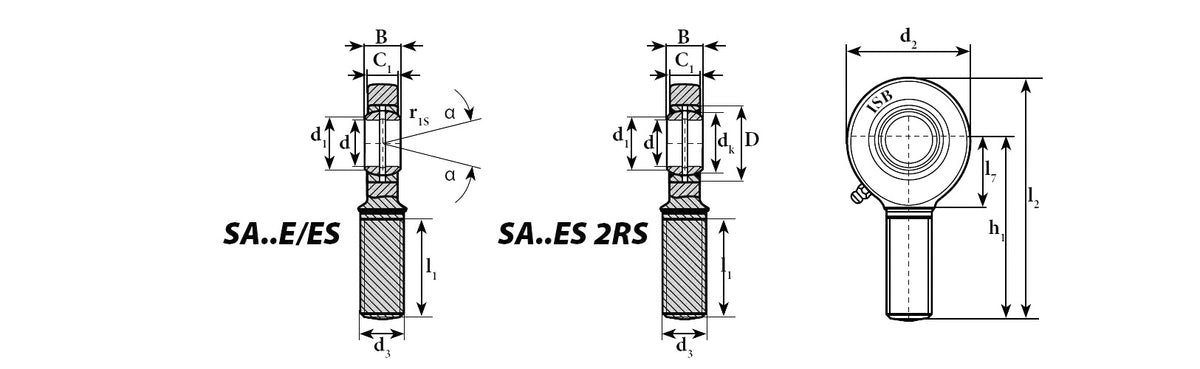

Technical
Technical
| d | 80mm |
|---|---|
| d1 | 89.4mm |
| d2 | 180mm |
| d3 | M 64x4mm |
| dk | 105mm |
| B | 55mm |
| C1 | 47mm |
| D | 120mm |
| h1 | 270mm |
| I1 | 140mm |
| I2 | 360mm |
| I7 | 100mm |
| α | 6° |
| r 1s min | 1Nmax Min -1 |
| Dynamic C | 400KN |
| Static C0 | 689KN |
| Weight | 13.1Kg |
