SKU: SAF1622/4-SKF

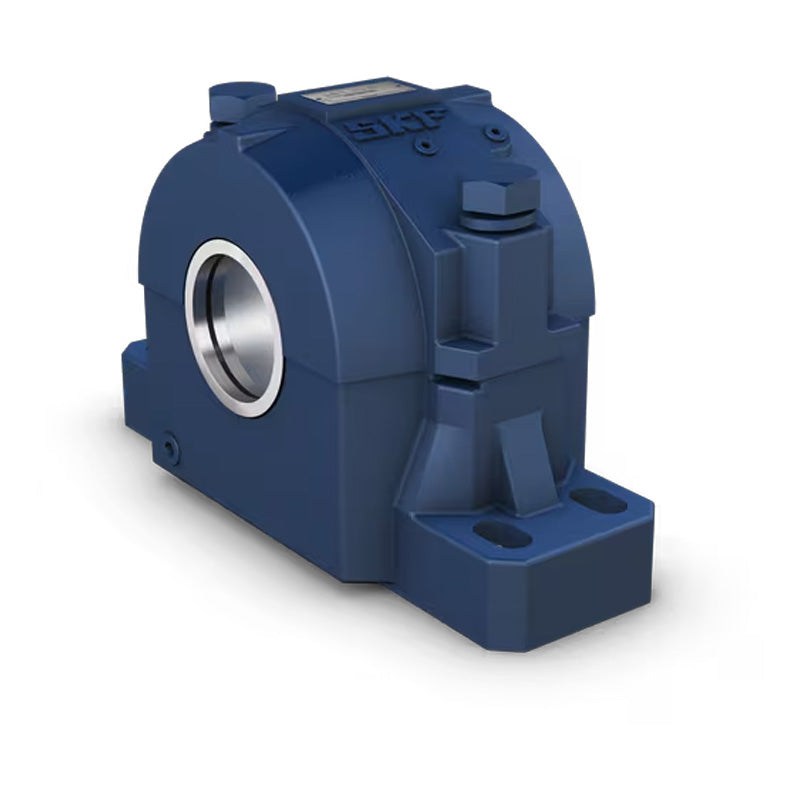

SKF SAF1622/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF1622/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
Technical
Technical
| Housing | SAF622 |
|---|---|
| Triple Ring Seal | LOR110 |
| Taconite Seal | TER110 |
| Bearing | 1322K |
| Adaptor Sleeve | HE322 |
| Fixing Rings | 2 x SR1622 |
| End Cover | EPR13 |
| da | 4 inch |
| A1 | 5-1/4 inch = 133.4mm |
| A2 | 8-1/8 inch = 206.4mm |
| A3 | 10-3/4 inch = 273.1mm |
| H | 11-5/16 inch = 287.3mm |
| H1 | 6 inch = 152.4mm |
| H2 | 2-3/8 inch = 60.3mm |
| Static oil level H3 | 2-13/32 inch = 61.1mm |
| J max | 2-1/2 inch = 63.5mm |
| J min | 16 inch = 406.4mm |
| J1 | 14-5/8 inch = 371.5mm |
| L | 3-1/4 inch = 82.6mm |
| X | 18-3/8 inch = 466.7mm |
| S | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 7/8 inch = 22mm |
| Weight | 62.6 kg |
