SKU: SAF22509/1-7/16-SKF

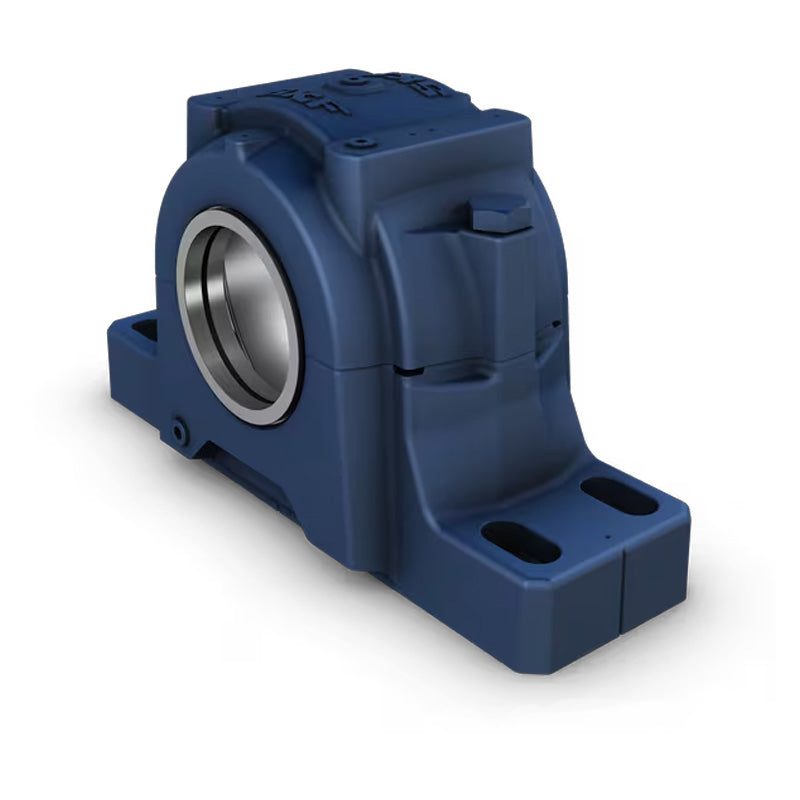

SKF SAF22509/1-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22509/1-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
Technical
Technical
| Housing | SAF509 |
|---|---|
| Triple Ring Seal | LER17 |
| Taconite Seal | TER17 |
| Bearing | 22209EK |
| Adaptor Sleeve | HA309 |
| Fixing Rings | 1 x SR9-9 |
| End Cover | EPR3 |
| da | 1-7/16 inch |
| A1 | 2-3/8 inch = 60.3mm |
| A2 | 3-5/8 inch = 92.1mm |
| A3 | 6-1/16 inch = 154mm |
| H | 4-7/16 inch = 112.7mm |
| H1 | 2-1/4 inch = 57.15mm |
| H2 | 13/16 inch = 20.6mm |
| Static oil level H3 Roller bearing | 31/32 inch = 24.6mm |
| Static oil level H3 Ball bearing | 1 inch = 25.4mm |
| J max | 7 inch = 177.8mm |
| J min | 6-1/4 inch = 158.8mm |
| L | 8-1/4 inch = 209.6mm |
| X | 7/64 inch = 2.8mm |
| Bolts (required) G | (2) 1/2 inch = 12mm |
| Weight | 5.4 kg |
