SKU: SAF22534/5-15/16-SKF

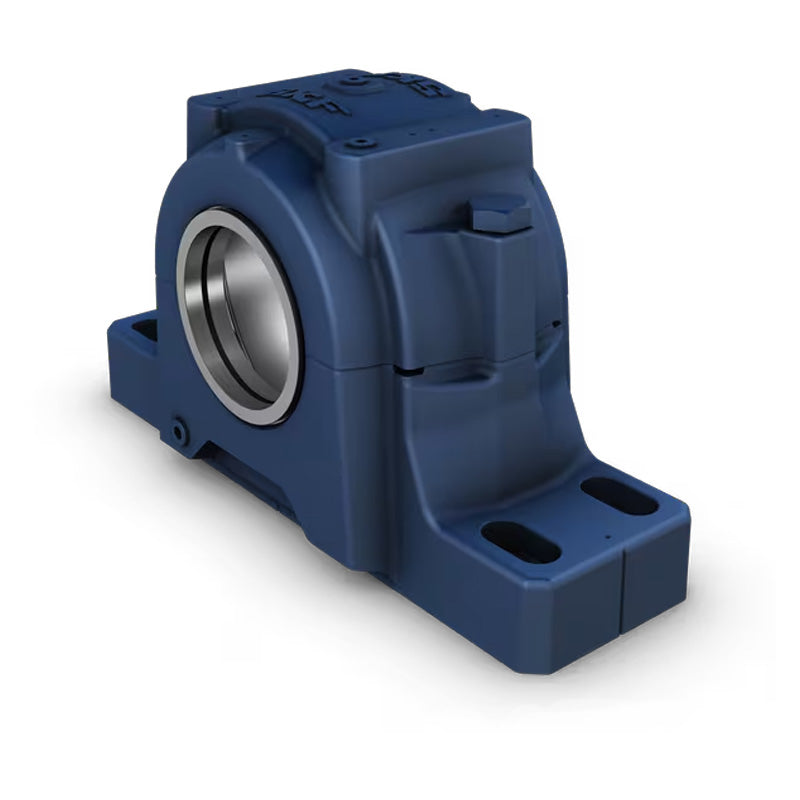

SKF SAF22534/5-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22534/5-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150.81mm = 5.937 (5-15/16) inch
Technical
Technical
| Housing | SAF534 |
|---|---|
| Triple Ring Seal | LOR140 |
| Taconite Seal | TER140 |
| Bearing | 22234CCK/W33 |
| Adaptor Sleeve | HA3134 |
| Fixing Rings | 1 x SR34-0 |
| End Cover | EPR18 |
| da | 5-15/16 inch |
| A1 | 6-3/4 inch = 171.5mm |
| A2 | 9-5/8 inch = 244.5mm |
| A3 | 12-1/8 inch = 308mm |
| H | 14-3/16 inch = 360.4mm |
| H1 | 7-1/16 inch = 179.39mm |
| H2 | 2-3/4 inch = 69.9mm |
| Static oil level H3 | 2-5/32 inch = 54.8mm |
| J max | 21-5/8 inch = 549.3mm |
| J min | 19-3/8 inch = 492.1mm |
| J1 | 4-1/4 inch = 108mm |
| L | 24-3/4 inch = 628.7mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| Weight | 140.6 kg |
