SKU: SAF22618/3-3/16-SKF

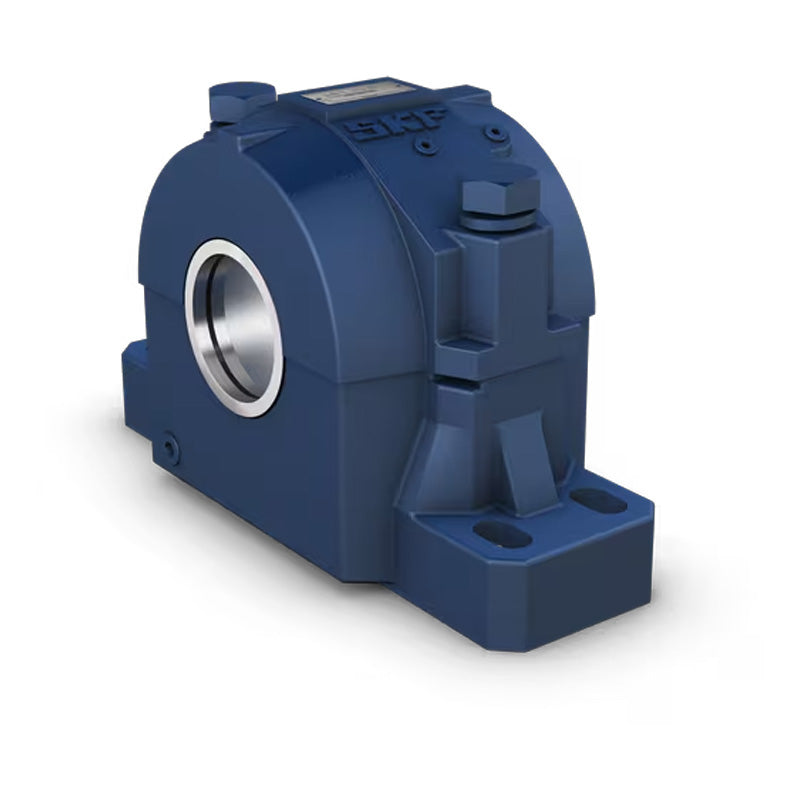

SKF SAF22618/3-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22618/3-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
Technical
Technical
| Housing | SAF618 |
|---|---|
| Triple Ring Seal | LOR188 |
| Taconite Seal | TER188 |
| Bearing | 22318EK |
| Adaptor Sleeve | HA2318 |
| Fixing Rings | 1 x SR21-18 |
| End Cover | EPR11 |
| da | 3-3/16 inch |
| A1 | 4-3/8 inch = 111.1mm |
| A2 | 6-7/8 inch = 174.6mm |
| A3 | 9-1/8 inch = 231.8mm |
| H | 9-1/4 inch = 235mm |
| H1 | 4-3/4 inch = 120.65mm |
| H2 | 2 inch = 50.8mm |
| Static oil level H3 Roller bearing | 1-7/8 inch = 47.6mm |
| Static oil level H3 Ball bearing | 2 inch = 50.8mm |
| J max | 13-1/2 inch = 342.9mm |
| J min | 12 inch = 304.8mm |
| J1 | 2-1/4 inch = 57.2mm |
| L | 15-1/2 inch = 393.7mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 44 kg |
