SKU: SAF22630/5-3/16-SKF

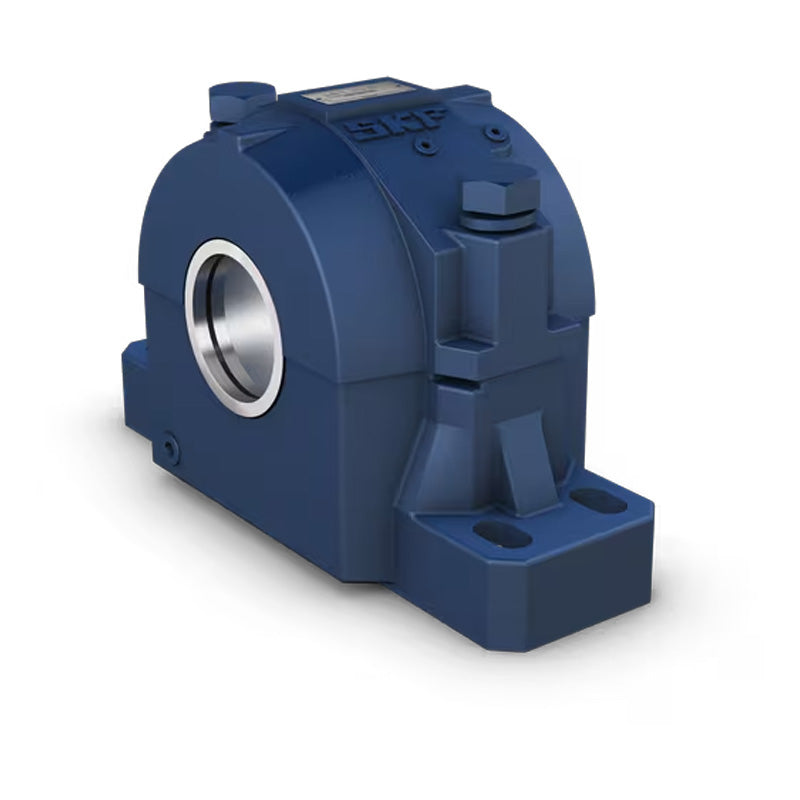

SKF SAF22630/5-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22630/5-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 131.76mm = 5.187 (5-3/16) inch
Technical
Technical
| Housing | SAF630 |
|---|---|
| Triple Ring Seal | LOR125 |
| Taconite Seal | TER125 |
| Bearing | 22330CCK/W33 |
| Adaptor Sleeve | HA2330 |
| Fixing Rings | 1 x SR36-30 |
| End Cover | EPR16 |
| da | 5-3/16 inch |
| A1 | 7-1/8 inch = 181mm |
| A2 | 9-3/4 inch = 247.7mm |
| A3 | 12-1/2 inch = 317.5mm |
| H | 14-7/8 inch = 377.8mm |
| H1 | 7-1/2 inch = 190.5mm |
| H2 | 3 inch = 76.2mm |
| Static oil level H3 | 2-5/8 inch = 66.7mm |
| J max | 23-5/8 inch = 600.1mm |
| J min | 20-7/8 inch = 530.2mm |
| J1 | 4-5/8 inch = 117.5mm |
| L | 26-3/4 inch = 679.5mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 7/8 inch = 24mm |
| Weight | 170.1 kg |
