SKU: SAFC2530/5-3/16-SKF

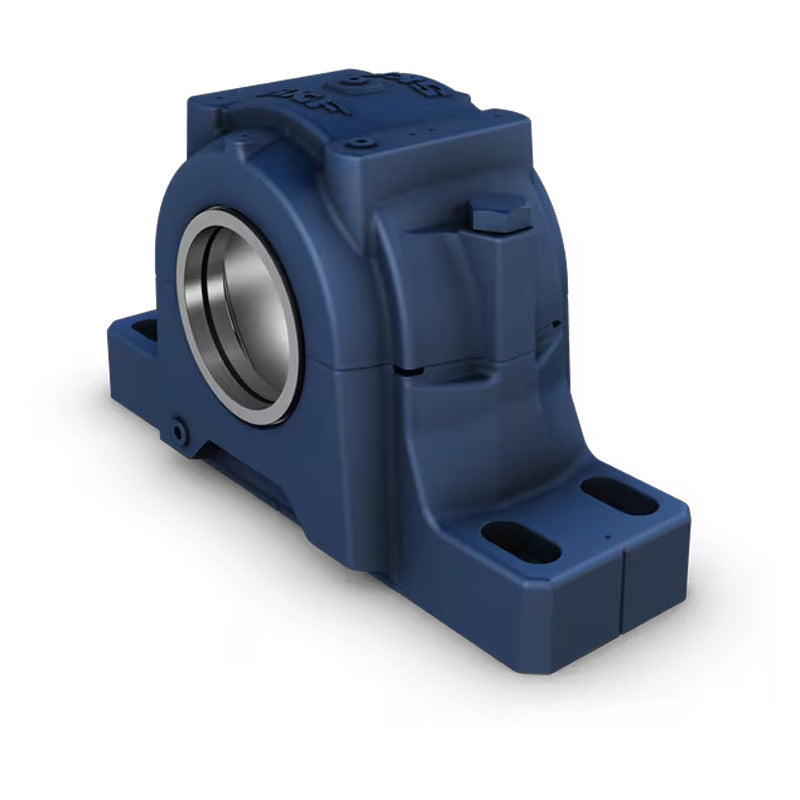

SKF SAFC2530/5-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

Name: SKF SAFC2530/5-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Brand: SKF
SKU: SAFC2530/5-3/16-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SKF - High Quality
Inside Diameter:: 131.76mm = 5.187 (5-3/16) inch

Technical

Housing	SAF530
Triple Ring Seal	LOR125
Taconite Seal	TER125
Bearing	C2230K
Adaptor Sleeve	HA3130L
Fixing Rings	1 x SR30-0
End Cover	EPR16
da	5-3/16 inch
A1	6-1/4 inch = 158.8mm
A2	8-3/8 inch = 212.7mm
A3	11 inch = 279.4mm
H	12-1/2 inch = 317.5mm
H1	6-5/16 inch = 160.34mm
H2	2-1/2 inch = 63.5mm
Static oil level H3	2 inch = 50.8mm
J max	18-1/4 inch = 463.6mm
J min	17 inch = 431.8mm
J1	3-3/4 inch = 95.3mm
L	21-1/4 inch = 539.8mm
X	3/16 inch = 4.76mm
Bolts (required) G	(4) 1 inch = 24mm
Weight	99.8 kg
