SKU: SAFS22216-11-SKF

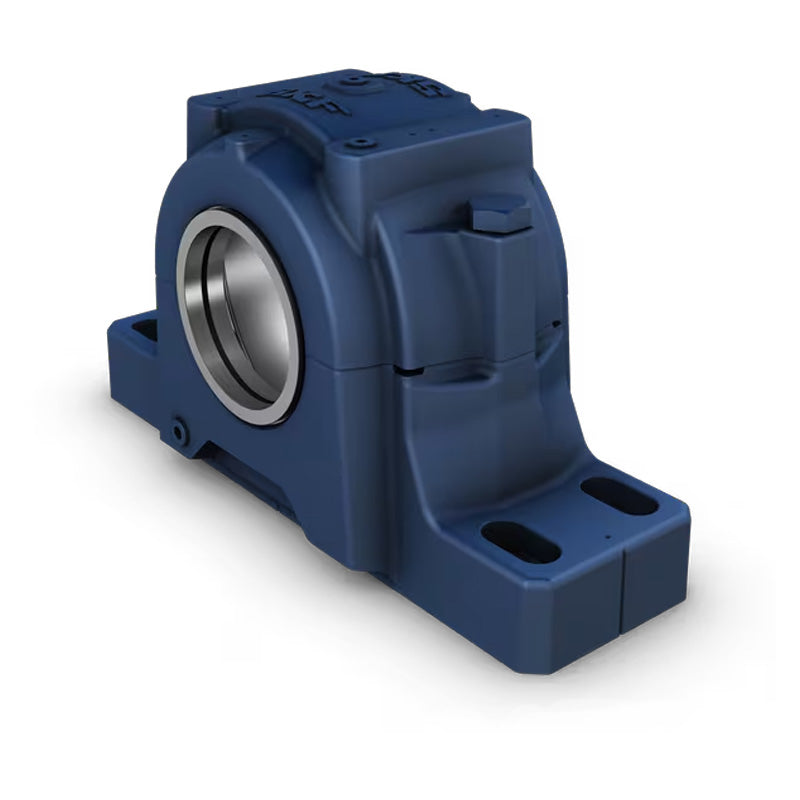

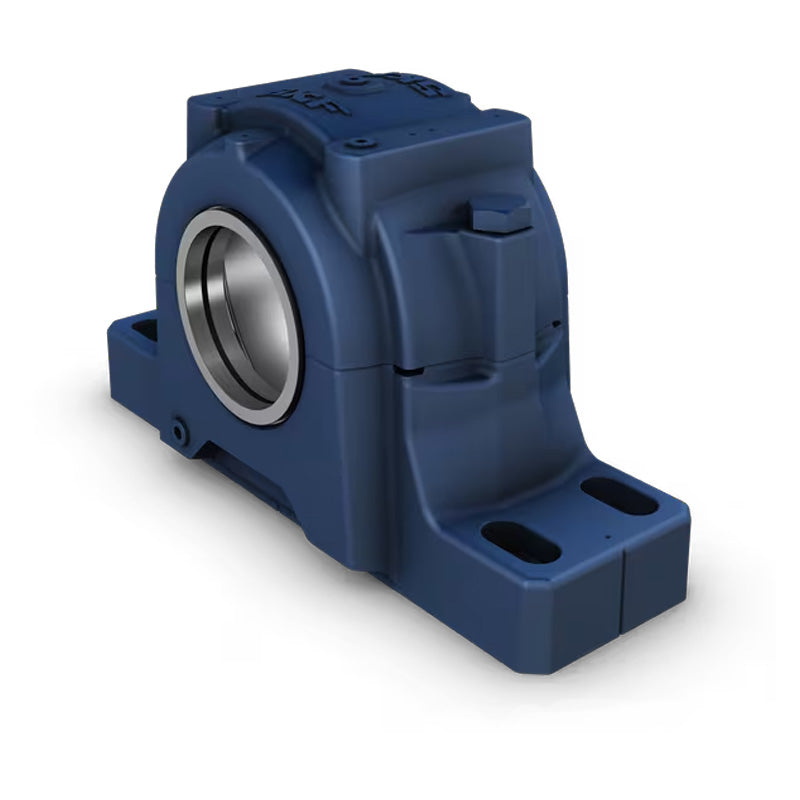

SKF SAFS22216-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAFS22216-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
Technical
Technical
| Housing | SAFS216-11 |
|---|---|
| Triple seal ring for shaft diameter da | LOR82 |
| Triple seal ring for shaft dia db | LOR54 |
| Bearing | 22216E |
| Lock nut | AN16 |
| Lock washer | W16 |
| Fixing rings | 1 x SR16-13 |
| End cover | EPR9 |
| da | 3-5/8 inch |
| db | 3 inch |
| A1 | 3-1/2 inch = 88.9mm |
| A2 | 5-5/16 inch = 134.9mm |
| A3 | 8-7/32 inch = 208.8mm |
| H | 6-19/32 inch = 167.5mm |
| H1 | 3-1/2 inch = 88.9mm |
| H2 | 1-1/4 inch = 31.8mm |
| Static oil level H3 Roller bearing | 1-1/4 inch = 31.8mm |
| Static oil level H3 Ball bearing | 1-5/16 inch = 33.3mm |
| J max | 11 inch = 279.4mm |
| J min | 9-5/8 inch = 244.5mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13 inch = 330.2mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 17 kg |
