SKU: SAFS22217-11-SKF

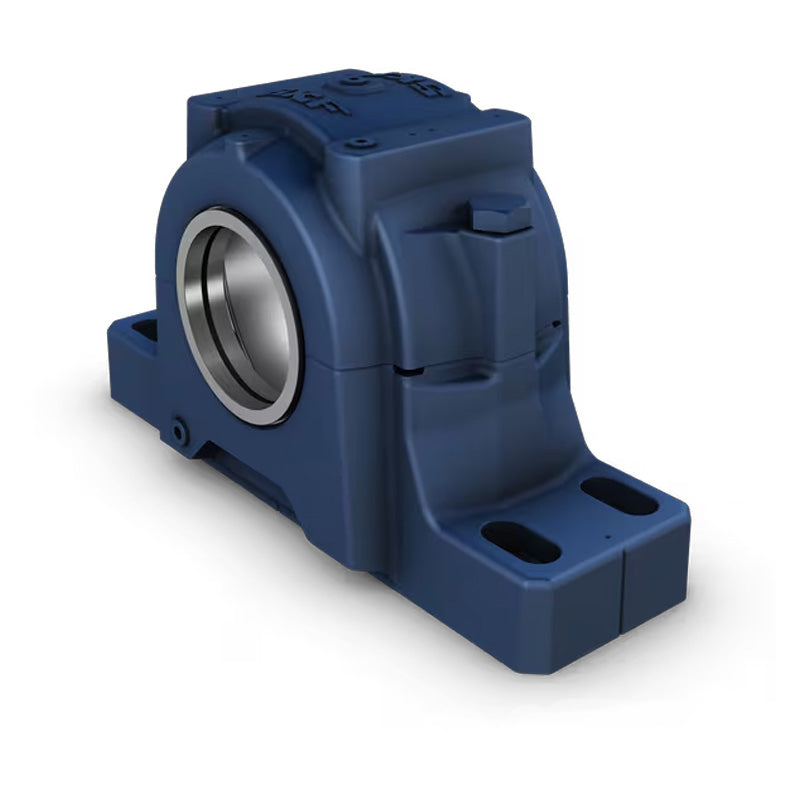

SKF SAFS22217-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAFS22217-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| Housing | SAFS217-11 |
|---|---|
| Triple seal ring for shaft diameter da | LOR89 |
| Triple seal ring for shaft dia db | LOR63 |
| Bearing | 22217E |
| Lock nut | AN17 |
| Lock washer | W17 |
| Fixing rings | 1 x SR17-14 |
| End cover | EPR9 |
| da | 3-15/16 inch |
| db | 3-3/16 inch |
| A1 | 3-1/2 inch = 88.9mm |
| A2 | 5 inch = 127mm |
| A3 | 7-13/16 inch = 198.4mm |
| H | 7-1/8 inch = 181mm |
| H1 | 3-3/4 inch = 95.25mm |
| H2 | 1-1/4 inch = 31.8mm |
| Static oil level H3 Roller bearing | 1-3/8 inch = 34.9mm |
| Static oil level H3 Ball bearing | 1-7/16 inch = 36.5mm |
| J max | 11 inch = 279.4mm |
| J min | 9-7/8 inch = 250.8mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13 inch = 330.2mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 19.4 kg |
