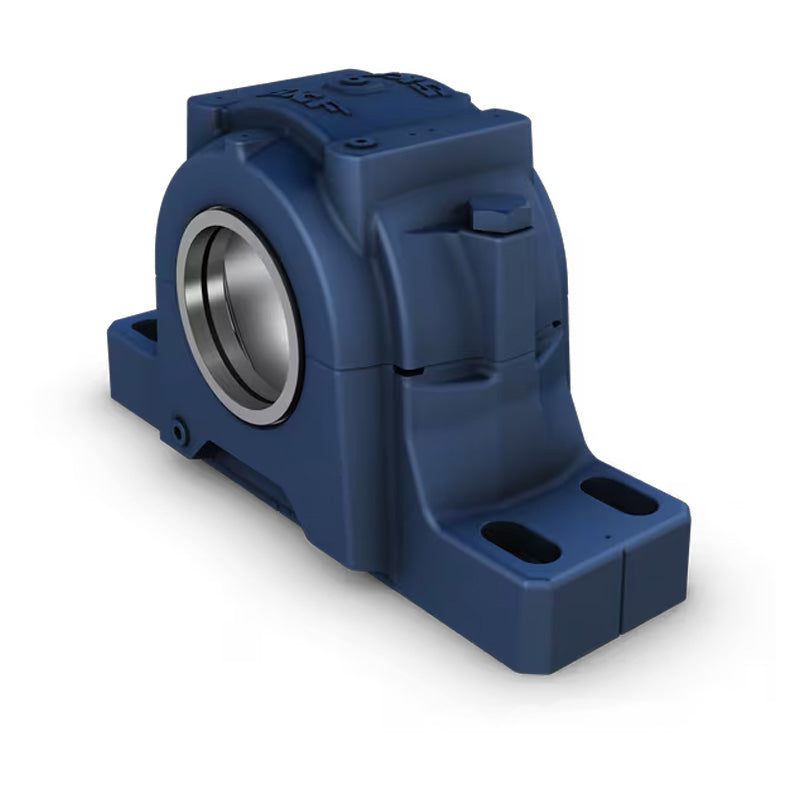

SKF SAFS22220-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAFS22220-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
Technical
Technical
| Housing | SAFS220-11 |
|---|---|
| Triple seal ring for shaft diameter da | LOR118 |
| Triple seal ring for shaft dia db | LOR106 |
| Bearing | 22220E |
| Lock nut | AN20 |
| Lock washer | W20 |
| Fixing rings | 1 x SR20-17 |
| End cover | EPR12 |
| da | 4-1/2 inch |
| db | 3-13/16 inch |
| A1 | 4-3/8 inch = 111.1mm |
| A2 | 6-1/8 inch = 155.6mm |
| A3 | 8-5/8 inch = 219.1mm |
| H | 8-15/32 inch = 215.1mm |
| H1 | 4-1/2 inch = 114.3mm |
| H2 | 1-3/4 inch = 44.5mm |
| Static oil level H3 | 1-21/32 inch = 42.1mm |
| J max | 13-1/8 inch = 333.4mm |
| J min | 11-5/8 inch = 295.3mm |
| J1 | 2-3/8 inch = 60.3mm |
| L | 15-1/4 inch = 387.4mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 34.4 kg |
