SKU: SAH003XP.FK
FK Brand SAH003XP Fully Sealed Agricultural Hub Bearing without Spindle
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Quantity Price Breaks
FK Brand SAH003XP Fully Sealed Agricultural Hub Bearing without Spindle
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
Agricultural Hub Bearings without Spindles: These FK branded fully sealed agricultural hub bearings consist of a hub with pre-installed sealed bearings. The hub is provided with 4 threaded holes M12x1.25 pitch thread for assembling to your drive. The design is such that on installation and torquing to specification the opposing inner races actually preset the running tolerances as they meet.
They are shipped ready-greased from the manufacturers and are ready to install, simply remove the failed unit, clean up the shaft and carefully slide the new one in place onto the shaft, refit the nut and washer you removed and tighten to the original equipment manufacturers recommended torque specifications.
Benefits: Ready to use, ready greased and ready assembled. Quality FK Brand.
Please note: These hubs are not supplied with retaining nuts and washers, these are specific to the equipment manufacturer whose hubs you are replacing.

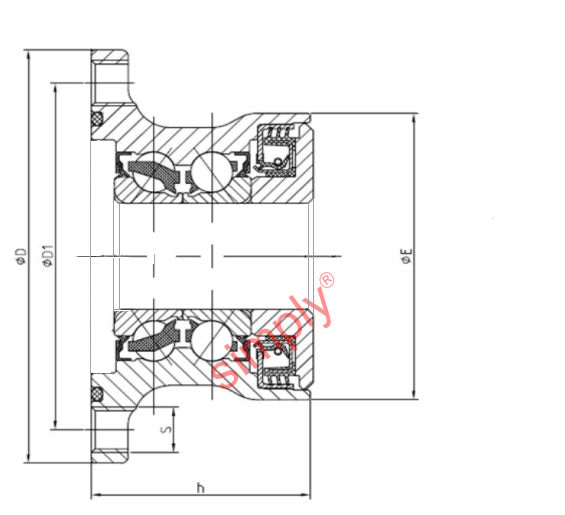

Technical
| Design type | = | 4 |
| Pitch circle diameter D1 | = | 98mm |
| Number of holes | = | 4 |
| Threaded hole | = | M12x1.25mm |
| Shaft / Thread mm | = | 30mm |
| Width h | = | 59mm |
| Bearing outer E | = | 81mm |
| Hub outer diameter D | = | 117mm |
