SKU: SAH006XP.FK

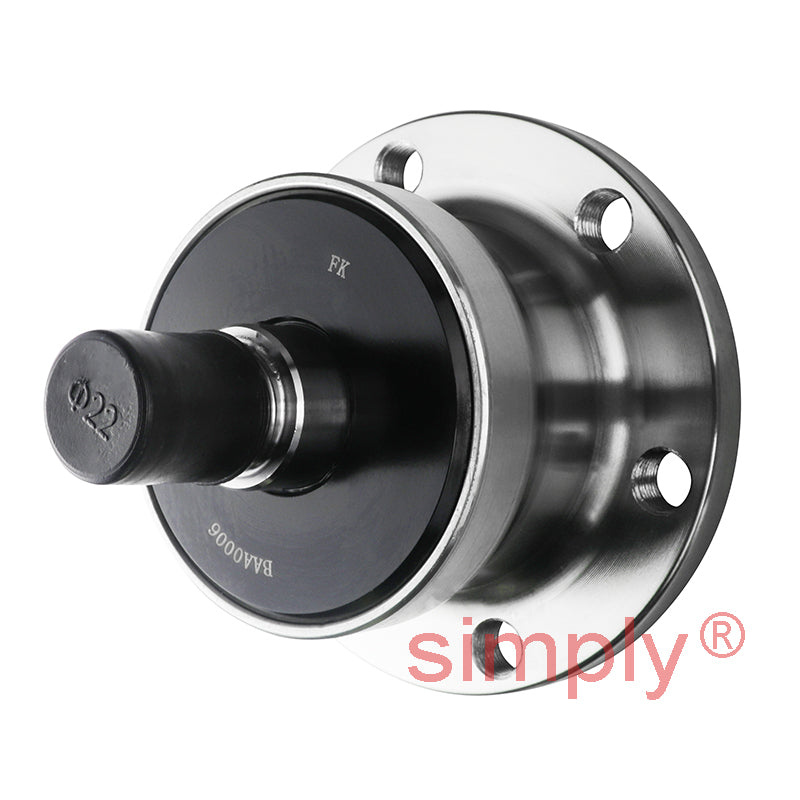

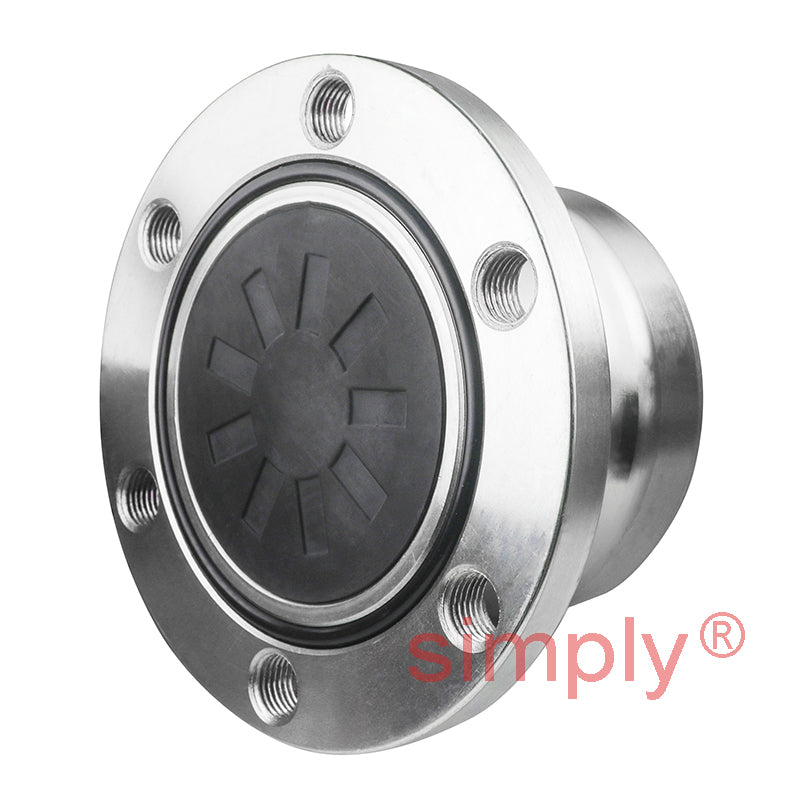

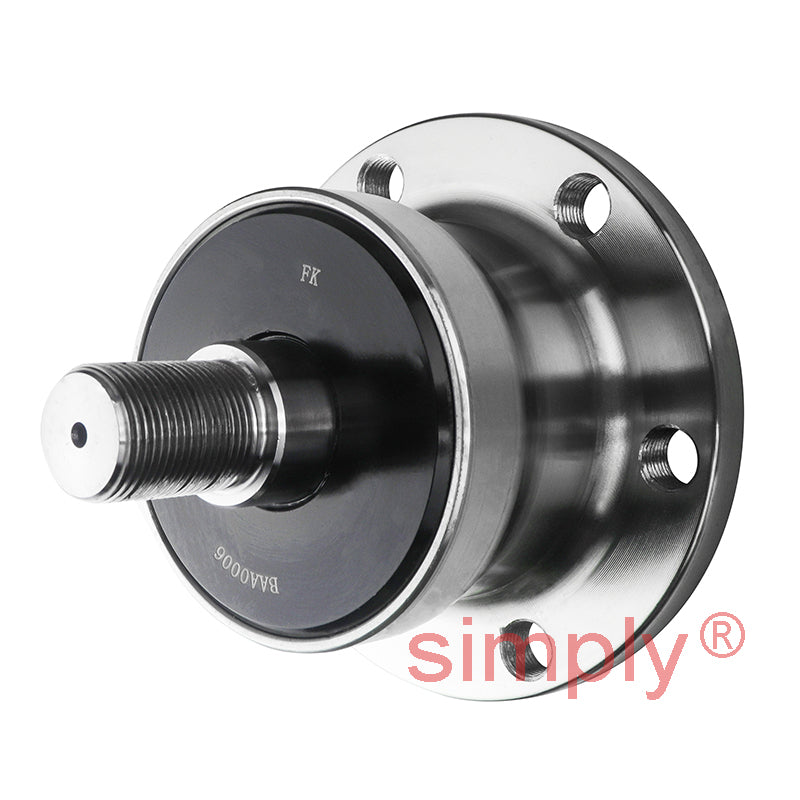

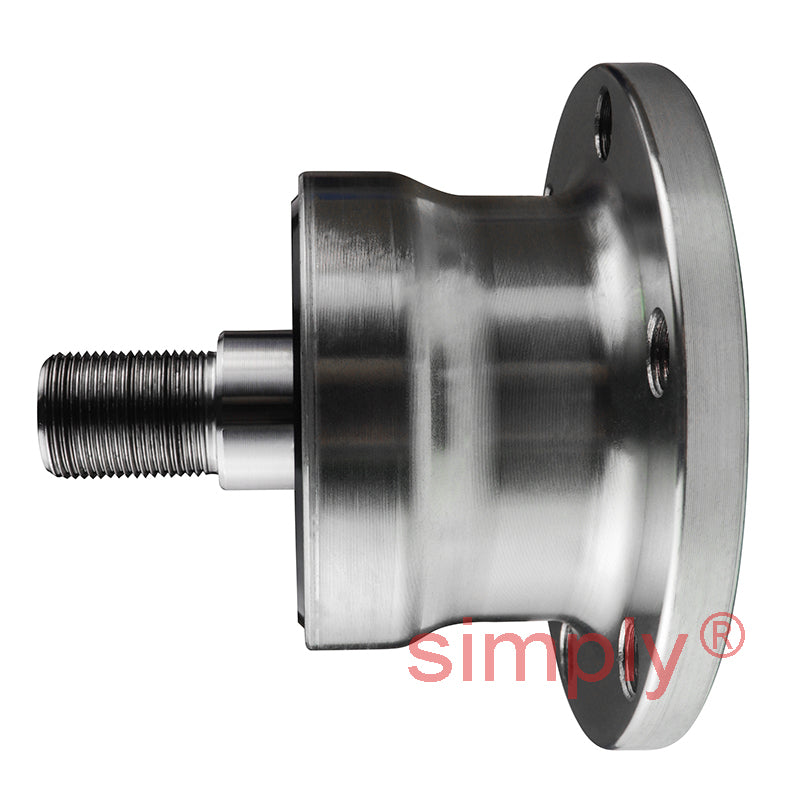

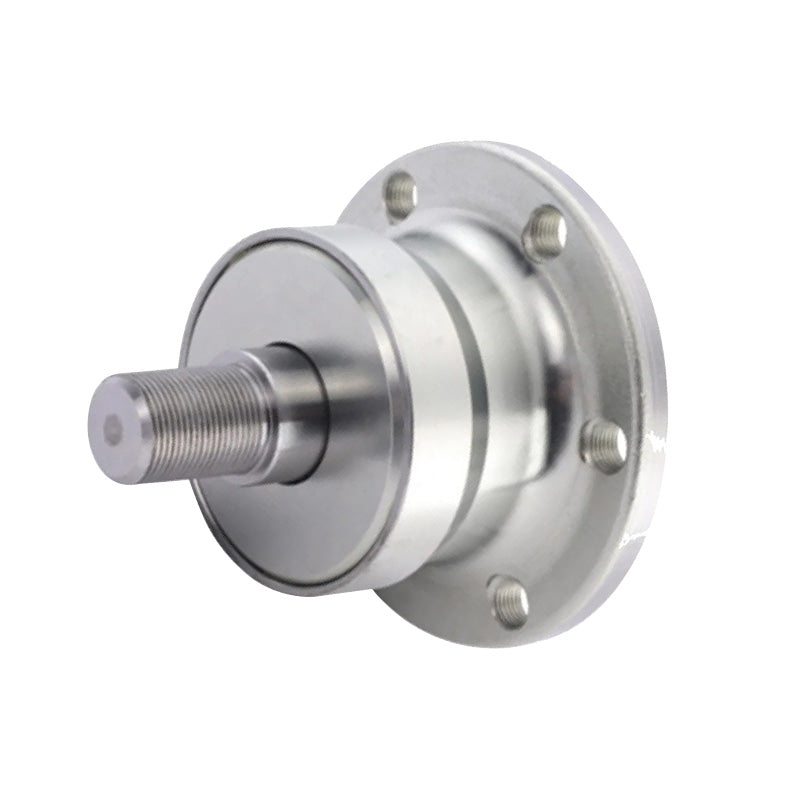

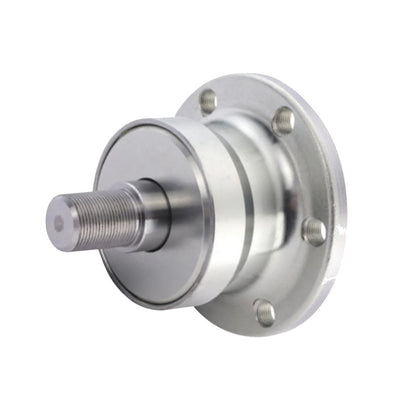

FK Brand SAH006XP Fully Sealed Agricultural Hub Bearing with Pre-Installed Spindle
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Quantity Price Breaks
FK Brand SAH006XP Fully Sealed Agricultural Hub Bearing with Pre-Installed Spindle
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Description
Agricultural Hub Bearings with Spindles: These FK branded fully sealed agricultural hub bearings consist of a hub with pre-installed sealed bearings and a pre-installed spindle. The hub is provided with 6 threaded holes M12x1.25 pitch thread for assembling to your drive.
They are shipped ready-greased from the manufacturers and are ready to install, simply remove the failed unit, clean up the assembly area and carefully fit the new one into place, refit the nut and washer you removed and tighten to the original equipment manufacturers recommended torque specifications.
Benefits: Ready to use, ready greased and ready assembled. Quality FK Brand.
Please note: These hubs are not supplied with retaining nuts and washers, these are specific to the equipment manufacturer whose hubs you are replacing.

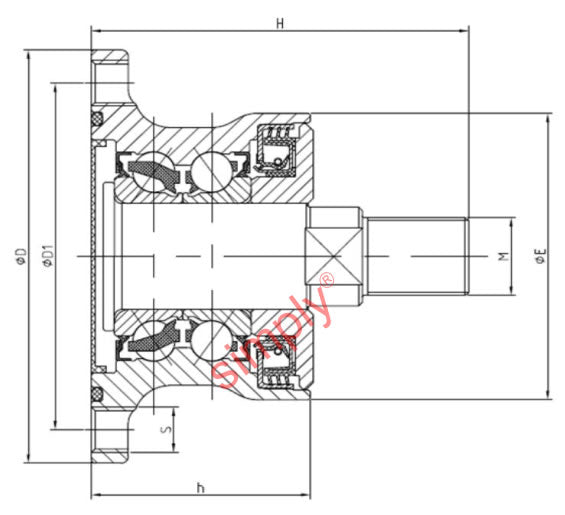

Technical
| Design type | = | 5 |
| Pitch circle diameter D1 | = | 98mm |
| Number of holes | = | 6 |
| Threaded hole | = | M12x1.25mm |
| Shaft / Thread mm | = | M22x1.5mm |
| Width h | = | 59mm |
| Bearing outer E | = | 81mm |
| Total width with thread H | = | 102mm |
| Hub outer diameter D | = | 117mm |
