SKU: SAKAC20M-CDX

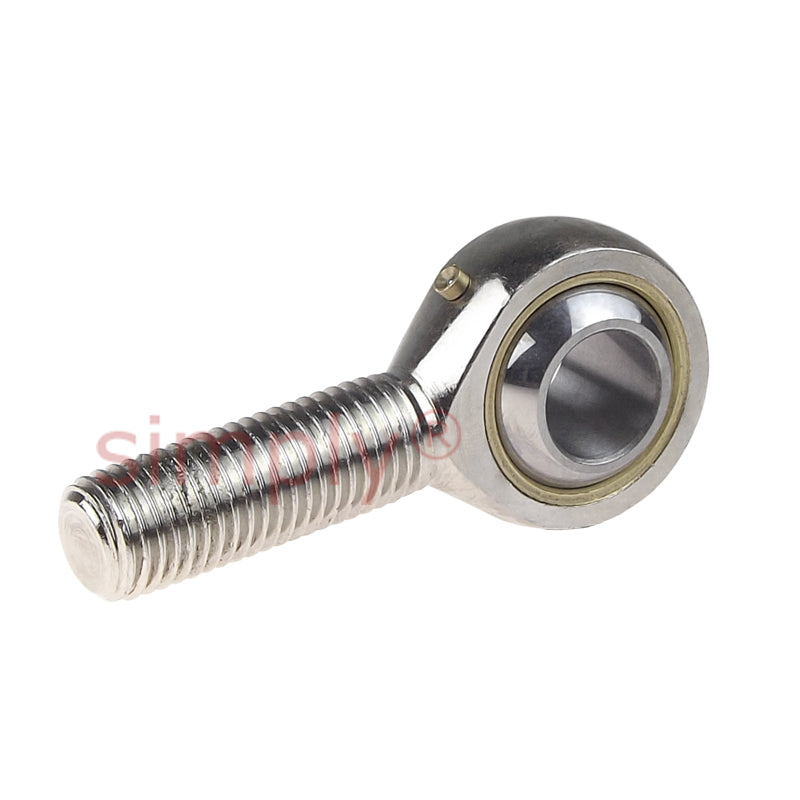

Codex SAKAC20M Right Hand Steel / Bronze Lined Plain Male Rod End M20x1.5 Thread
Codex SAKAC20M Right Hand Steel / Bronze Lined Plain Male Rod End M20x1.5 Thread
Regular price
€34,45
ex VAT
Regular price
Sale price
€34,45
ex VAT
Equivalent to: POS20 SM20 MB-M20 GAKFR20PB
In stock
Price Break
10+
€26,18
19+
€24,71
29+
€24,42
39+
€24,12
49+
€23,83
74+
€23,54
99+
€22,06
199+
€21,77
249+
€21,48
499+
€21,18
999+
€20,59
Quantity
Couldn't load pickup availability
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51mm |
| G | M20x1.5 |
| B | 25mm |
| C1 max | 18mm |
| h1 | 78mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 29 kN |
| Static load | 29 kN |
| dk | 34.9mm |
| l1 min | 45mm |
| l2 max | 106mm |
| r1 min | 0.3mm |
| Weight | 0.34 kg |
