SKU: SALKAC12M-CDX

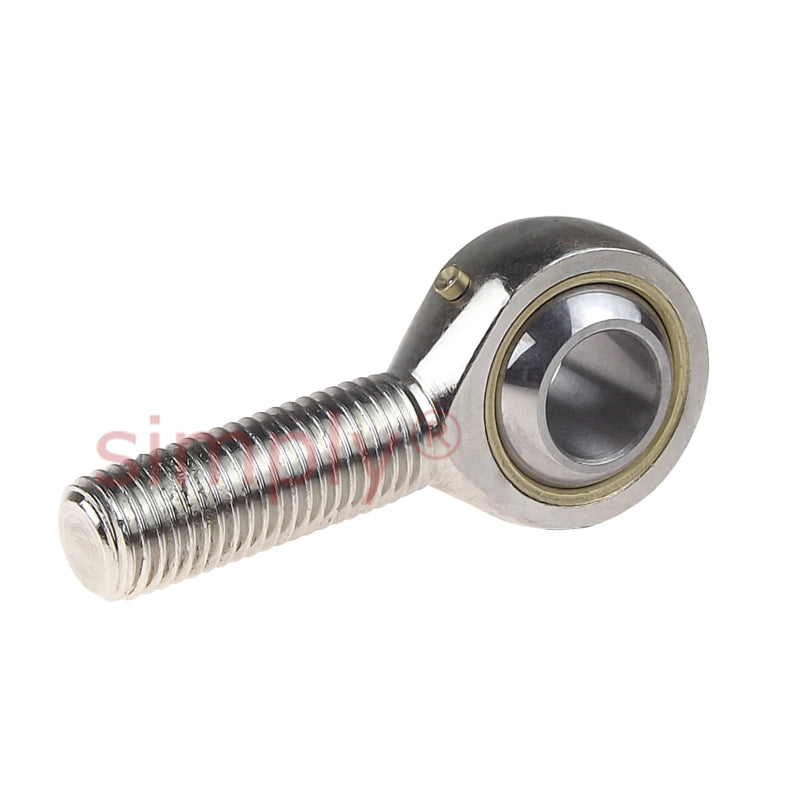

Codex SALKAC12M Left Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
Codex SALKAC12M Left Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
Regular price
€17,81
ex VAT
Regular price
Sale price
€17,81
ex VAT
Equivalent to: POS12L MBL-M12
In stock
Price Break
10+
€13,54
19+
€12,78
29+
€12,62
39+
€12,47
49+
€12,32
74+
€12,17
99+
€11,41
199+
€11,26
249+
€11,10
499+
€10,95
999+
€10,65
Quantity
Couldn't load pickup availability
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical

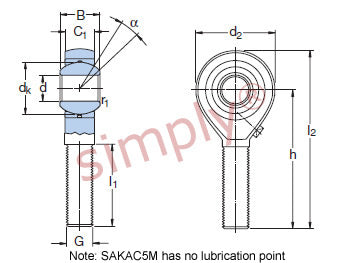

| d | 12mm |
|---|---|
| d2 max | 33mm |
| G | M12 |
| B | 16mm |
| C1 max | 12mm |
| h1 | 54mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 12.2 kN |
| Static load | 12.2 kN |
| dk | 22.2mm |
| l1 min | 32mm |
| l2 max | 72mm |
| r1 min | 0.3mm |
| Weight | 0.085 kg |
