SKU: SALKAC25M-CDX

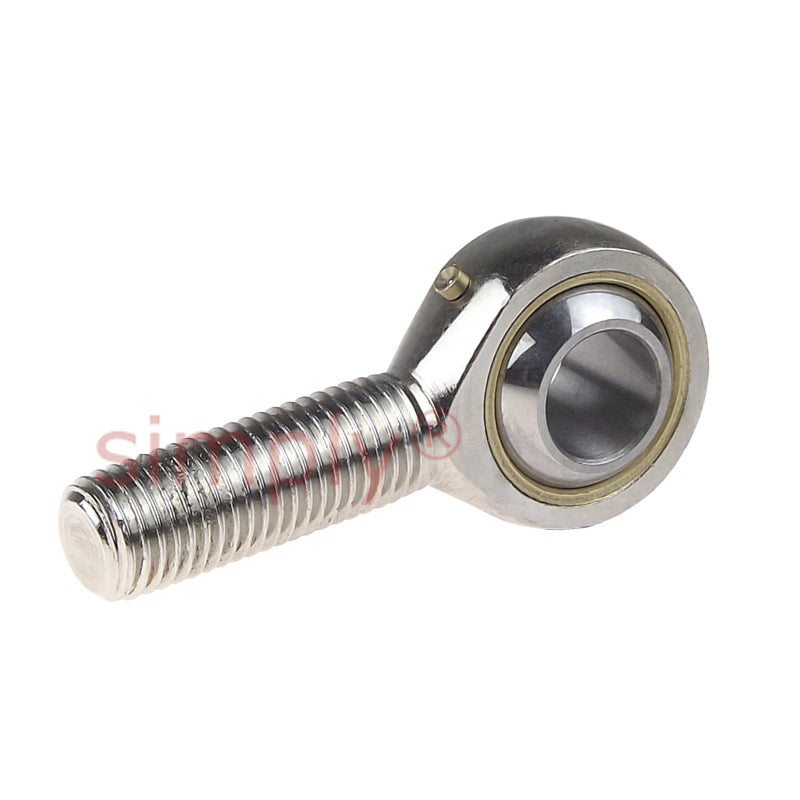

Codex SALKAC25M Left Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread
- Regular price
- €56.42 ex VAT
- Sale price
- €56,42
- Regular price
-
In stock
Quantity Price Breaks
10
€50.21
19
€47.39
29
€46.83
39
€46.26
49
€45.70
74
€45.14
99
€42.32
199
€41.75
249
€41.19
499
€40.62
999
€39.49
SKU:
SALKAC25M-CDX
Codex SALKAC25M Left Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread
- Regular price
- €56.42 ex VAT
- Sale price
- €56,42
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 25mm |
| d2 max | = | 61mm |
| G | = | M24x2 |
| B | = | 31mm |
| C1 max | = | 22mm |
| h1 | = | 94mm |
| Max misalignment angle | = | 15 degrees |
| Dynamic load | = | 46.5 kN |
| Static load | = | 46.5 kN |
| dk | = | 42.8mm |
| l1 min | = | 55mm |
| l2 max | = | 127mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.6 kg |
